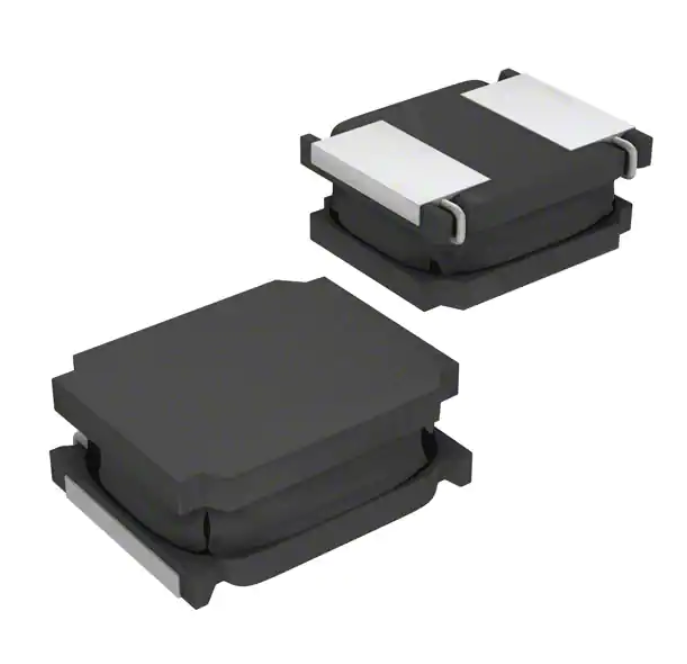

| Part Number | 74404024022 | Manufacturer | Würth Elektronik |
|---|---|---|---|
| Category | Fixed Inductors | Inductance | 2.2 µH |
| Mounting Type | Surface Mount | Tolerance | ±20% |
| Package / Case | Nonstandard | Current Rating (Amps) | 1.8 A |
| Ratings | AEC-Q200 | Current - Saturation (Isat) | 1.95A |
| Operating Temperature | -40°C ~ 125°C | Frequency - Self Resonant | 83MHz |
| DC Resistance (DCR) | 80mOhm | Inductance Frequency - Test | 1 MHz |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Height | 0.047" (1.20mm) |
