Automotive PCB Manufacturing and Assembly
Automotive PCB manufacturing and assembly means building circuit boards that survive heat, vibration, and a 10-year vehicle life. At LZJPCB, I make these boards under IATF 16949 rules. We handle rigid, flex, and rigid-flex types, plus full SMT and through-hole assembly, with complete traceability for every order.
What Defines an Automotive Grade PCB
An automotive-grade PCB is a board built to survive a vehicle’s harsh life. It must handle temperatures from -40°C to +125°C, constant vibration, moisture, and electrical noise. It must work without failure for 10 years or more. That long life and heat resistance set it apart from consumer boards.
Cars have changed a lot since 1968. Back then, makers started putting computers into vehicles. Today, no new car can run without an onboard computer, and that computer needs complex automotive PCBs. These boards control engines, brakes, displays, and safety systems. Every choice in design and assembly affects driver safety. That is why I treat each board as a safety part, not just an electronic part.
Why Automotive Electronics Demand Zero-Defect PCBs
Automotive electronics demand zero-defect PCBs because a single failure can risk a life. A car runs through motion, heat, and constant vibration at the same time. Roads have potholes and damage that shake the board. The board must survive at least 1,000 thermal cycles from -40°C to +125°C without a cracked joint or broken via. One car holds about 45 boards across 20+ systems.
A fault in one board can hurt many systems that depend on it, here is what a zero-defect board must do:
- Hold solder joints stable under cold starts and hot engine bays
- Take continuous vibration without cracked joints or broken vias
- Resist corrosion from moisture, road salt, and chemicals
- Keep signal integrity for high-speed sensor and data links
- Run safely for 10 years or more, nearly 150,000 to 200,000 miles
A recall for an electronic defect can cost from $10 million to $1 billion. So OEMs expect zero-defect thinking, full traceability, and strong process control. I target under 50 PPM defects, the level Tier 1 suppliers need.
Why Automotive Electronics Demand Zero-Defect PCBs
Automotive PCB substrates use materials made for high heat and fast heat dissipation. Common picks are flame-retardant fiberglass epoxy laminate, ceramic-filled PTFE, ceramic, and polyimide. These give high mechanical strength and good thermal stability. For under-hood boards, I move from standard FR-4 (Tg about 135°C) to high-Tg material (Tg 170°C or more). This cuts z-axis expansion by 50% and protects plated through-holes after 5,000+ thermal cycles. Copper foils in the inner and outer layers are thicker to carry current and withstand electrical vibration. Adhesives include epoxy, polyimide, acrylic, and sometimes silicone for vibration and heat protection. Material choice always balances cost, reliability, and performance. Below is a quick comparison I use when I guide clients on substrate choice.
| Material | Tg / Trait | Best Use |
|---|---|---|
| Standard FR-4 | Tg 135°C | Cabin, low-stress boards |
| High-Tg FR-4 | Tg ≥170°C | Under-hood, lead-free assembly |
| Polyimide | High strength, heat stable | Flex and harsh zones |
| Ceramic / PTFE | High frequency, heat stable | Radar, high-frequency boards |
| Metal core (aluminum) | Strong heat dissipation | LED lights, brake lights |
Automotive PCB Specifications and Technical Parameters
Automotive PCB specifications cover 1 to 40 layers, board thickness of 0.6mm to 3.2mm, copper weight from 1 oz to 6 oz, and impedance control to ±5%. Boards use high-Tg laminate for heat and finishes like ENIG or ENEPIG. The exact spec depends on the vehicle system the board serves.
Different car systems need different specs. A radar board is not built like an LED light board. So I match each parameter to the job. Below I break down layers, copper weight, surface finishes, and impedance. At our Ji’an city base I run 1–40L prototypes and 1–32L mass production, with impedance control to ±5% and copper up to 12oz. This range lets me serve almost any automotive program from one factory.
Layer Count and Thickness Ranges for Automotive Designs
Layer count for automotive designs ranges from simple single-sided boards to over 20-layer stacks. Standard boards use 1 to 12 layers. Advanced boards use 14 to 40 layers. Autonomous and ADAS boards often need 8 to 20+ layers for redundant power paths and fail-safe operation. Standard PCB thickness runs 0.2mm to 3.0mm, but automotive boards run 0.6mm to 3.2mm. The higher floor gives more rigidity. Here is how I think about it:
- 1–6 layers: lighting, wiper, throttle, simple control boards
- 6–12 layers: body control, infotainment, telematics
- 8–20+ layers: ADAS, BMS, inverter, domain controllers
Thinner advanced boards down to 0.005 inches fit tight spaces like door panels and headliners. Thicker stacks give room for heavy copper and thermal vias. The right count depends on signal speed, current, and the space inside the vehicle.
Copper Weight Options: 1 oz to 6 oz for High-Current Paths
Copper weight choices run from 1 oz for signal traces up to 6 oz, or 10–12 oz for heavy-copper power boards. Standard boards use 0.5 oz to 3 oz. Advanced power boards use 4 oz to 10 oz. Heavy copper matters most for EV power work, like power distribution and motor control. Going from 3 oz to 10 oz raises current capacity by over 200%. EV BMS boards often need 2 to 3 oz on high-current paths, far above the standard 1 oz. When copper passes 4 oz (140 µm), I change the reflow profile. I use longer soak zones of 120–180 seconds and higher peak temperatures of 270°C to wet the solder properly. Thicker copper also takes electrical vibration better and lets more current pass through the inner and outer layers.
Surface Finishes: ENIG, ENEPIG, and Immersion Tin
Surface finish choices for automotive boards include ENIG, ENEPIG, immersion silver, immersion tin, HASL, and OSP. No single finish fits every case. I pick based on solderability, corrosion resistance, and cost. ENIG works well for fine-pitch parts but has a shelf life of 6–12 months before gold embrittlement risk rises, so I manage pre-plated stock with care on long programs. Immersion silver costs less but can tarnish in sulfur-rich zones like engine bays, so I keep it to cabin boards. ENEPIG handles wire bonding and mixed assembly well. Here is a simple guide:
| Finish | Strength | Best Use |
|---|---|---|
| ENIG | Flat, fine-pitch ready | BGA, dense boards |
| ENEPIG | Wire bond, corrosion resistant | Mixed, high-reliability |
| Immersion silver | Low cost, flat | Cabin electronics |
| Immersion tin | Good for fine pitch | Press-fit, cabin |
Controlled Impedance and High-Temperature Laminate Selection
Controlled impedance for automotive boards holds to ±5% on high-speed and radar designs. ADAS radar at 76–81 GHz needs traces within ±5–10% to keep antenna phase matching. This nearly halves routing density next to digital-only boards. For high frequency, I use Rogers, Isola, or Nelco laminate with Dk under 4.0 and Df under 0.005 at 10 GHz, not plain FR-4. Network speeds also push laminate choice. CAN runs up to 1 Mbps, FlexRay 10 Mbps, and automotive Ethernet 100 Mbps to 1 Gbps, and each needs its own routing and shielding plan. For heat, I select high-Tg laminate with low z-axis CTE under 55 ppm/°C. The thermal gap between copper (about 17 ppm/°C) and FR-4 z-axis (about 70 ppm/°C) stresses vias during cycling. Good laminate choice cuts that stress and keeps the board alive over the vehicle’s life.
Automotive PCB Applications from ADAS to EV Powertrain
Automotive PCBs serve at least 11 vehicle subsystems, from ADAS sensors and EV battery management to infotainment and lighting. A single car uses rigid, flex, and rigid-flex boards together. Each system needs its own board type, copper weight, and material to do its job safely.
Automotive PCBs monitor and control the car. They improve safety, raise fuel efficiency, cut wasted power, and run infotainment. The list spans visible systems like displays and lights and hidden systems like engine control, transmission, and radar. They also drive ABS, airbags, comfort units, GPS, power relays, and mirror controls. Let me show the four big groups I build for most often.
ADAS and Autonomous Driving Sensor Boards
ADAS sensor boards process radar, lidar, and camera data to cut accidents. These boards need high-speed routing, dense placement, fine-pitch BGAs, and EMI-aware layouts. Many use redundant paths with diagnostic circuits. Radar, lidar, and camera modules share one need: high-frequency material to hold impedance above 24 GHz. I use HDI boards with microvias and multilayer stack-ups, reaching 50/50 µm line and space, to shrink board size 30–50% for modules behind bumpers and mirrors. Sensor fusion ties radar, lidar, and camera into one view. That data must align within milliseconds, so signal integrity and steady propagation delay are must-haves. LiDAR boards need impedance-controlled traces, often 50Ω single-ended and 100Ω differential, to keep nanosecond laser pulses clean. High-frequency material like Rogers RO4350B has low thermal conductivity (0.69 W/m·K), so I plan thermal via density and part placement with care.
Electric Vehicle Battery Management System PCBs
EV battery management system PCBs watch cell voltage, temperature, and state of charge, and balance cell groups. They need high-voltage isolation between the high-voltage battery bus and the low-voltage control side. Modern EVs run 800V or more, with busbar currents over 200A. So these boards often use 6 to 12 layers with 2–3 oz copper, thicker than standard 1 oz boards. For 800V designs, creepage and clearance run about 4.5–7.0 mm, roughly 200–300% more than 12V systems. That changes part density and routing a lot. The board must also prevent thermal runaway spread and hold isolation. I use heavy copper, high-Tg material, and proper creepage and clearance distances for high-voltage safety. The standard I hold is consistent performance over a 10–15 year life.
Infotainment and Telematics Communication Boards
Infotainment and telematics boards run displays, audio, and wireless links like 4G, 5G, Wi-Fi, Bluetooth, and GNSS. Digital cockpits now use 12-inch or larger 4K screens and 5G modems, so PCBA power has climbed to 12–25W per assembly. That needs active or hybrid thermal management. In-vehicle Ethernet runs 100BASE-T1 to 1000BASE-T1 over differential pairs with 100 Ω ±5% impedance, and cable runs reach 15 meters, so the connector transition zone is the key signal integrity spot. I control signal integrity by fixing impedance, crosstalk, and ground reference with proper stackup and guard traces. These boards also need secure boot, hardware security modules, and stable power for OTA updates. A power loss during a flash write can brick a module, and dealer rework can cost $450–750 per unit, so I add brown-out detection and hold-up capacitors.
Lighting and Body Control Modules
Lighting and body control boards drive LED headlights, brake lights, running lights, and indicators. LED boards usually use aluminum metal-core substrates for strong heat dissipation, since each LED module can throw off 2–5 W. Lighting boards need three protective traits: arcing prevention, insulation breakdown prevention, and heat management. For arcing, I use conformal coating plus clearance distances set per IPC-2221B, and I pick coating with a CTI rating of 600V or more for exterior lamps that face salt and moisture. Adaptive lighting needs current control under 100ms, so I tighten trace impedance and MOSFET switching design. Body control modules manage comfort units, mirrors, and power relays. Rigid-flex boards fit lighting well, since they follow body panel curves across hinge points like trunk lids and folding headlights.
Automotive PCB Assembly Capabilities for SMT and Through-Hole
LZJPCB handles automotive PCB assembly for SMT and through-hole, including fine-pitch BGAs, leadless QFN parts, mixed technology, and conformal coating. Our SMT lines place 8 million parts per day with ±0.04mm accuracy. We assemble rigid, flex, rigid-flex, and metal core boards under one roof.
We started our PCBA division in 2014. Today I run 3 PCBA factories with 100+ staff and an EMS team holding 10+ years of experience. Our SMT lines reach 8 million placements a day, 200M+ a month. We place down to 01005 parts and 0.35mm pitch BGAs. Kitted materials go online within 2 hours, and urgent orders get a 7×24 response. Assembly choices control vehicle safety, so I treat each step as a safety step.
SMT Assembly for Fine-Pitch BGAs and Leadless Components
SMT assembly handles fine-pitch BGAs and leadless parts like QFN and LGA with high accuracy. My lines hold ±0.04mm for chip parts and ±0.03mm for ICs. Automotive ECUs now use more BGA and leadless packages, since they give higher pin density and better thermal and electrical performance than through-hole parts. ADAS boards push this hard. They need precise solder paste printing, accurate placement, and tuned reflow profiles for stable work across the full temperature range. My process flow is simple and tight:
- Print solder paste with a GKG automatic printer
- Check paste with 3D SPI before placement
- Place parts with YAMAHA high-speed machines
- Reflow through a 10/12-zone oven with a logged profile
- Inspect joints with inline AOI and X-Ray
Leadless and BGA joints hide under the part. So I lean on X-Ray, since AOI catches only 50% of those hidden joint faults, while X-Ray reaches 95%.
Through-Hole and Mixed-Technology Assembly Processes
Through-hole and mixed-technology assembly join surface-mount and leaded parts on one board. Many automotive boards mix both, since connectors and high-current parts often use through-hole legs for strength under vibration. I run DIP insertion lines, wave soldering, and selective soldering for these jobs. My board size range runs 50×50mm to 774×710mm, with thickness from 0.3 to 6.5mm. I assemble POP, standard rigid, FPC, rigid-flex, and metal core boards. The order I follow keeps quality steady:
- Place and reflow all SMT parts first
- Insert through-hole parts on the DIP line
- Wave or selective solder the leaded parts
- Inspect with AOI and microscope checks
- Test electrical continuity with flying probe or fixture
Mixed assembly requires careful planning so that the wave-solder heat does not damage nearby surface parts. I set part placement and thermal zones early to avoid that.
Conformal Coating and Potting for Harsh Environment Protection
Conformal coating and potting protect assembled boards in harsh vehicle zones. Coating does three jobs: it blocks moisture and condensation, it keeps out dust and debris, and it damps mechanical stress to stop micro-cracks under vibration. I pick the coating type by the application. Silicone coatings run 25–75 µm thick and give dielectric strength of 1,000–3,000 V/mil, which helps 800V EV isolation without adding weight. Potting fills a module fully for the worst zones, like under-hood or chassis spots. I select based on these checks:
- Temperature range of the mounting location
- Moisture, salt, and chemical exposure
- Vibration level and shock load
- Need for high-voltage isolation
- Rework needs and service access
For high-voltage PCBA in severe spots, I add thermal vias, heat spreaders, and special coatings. The goal is a board that lasts the full vehicle life in the field.
IATF 16949 Certified Manufacturing and Rigorous Testing Standards
LZJPCB holds IATF 16949 certification, the active automotive quality standard. We test against AEC-Q100 and AEC-Q200 component rules, run in-circuit and flying probe tests, and apply thermal cycling and vibration stress screening. Every automotive board passes 100% electrical test plus AOI before it ships.
We earned IATF 16949 in 2023, on top of ISO9001, ISO14001, ISO13485, UL, CUL, RoHS, and REACH. Michael, my typical client in Germany, always checks for industry experience and the right certs first. I respect that. Automotive quality runs on zero-defect thinking, full traceability, and strong process control. Below I show how I prove a board is safe through the right system, the right component rules, the right electrical tests, and the right environmental screening.
IATF 16949 Quality Management System Implementation
IATF 16949 is the active automotive quality management system, replacing the older ISO/TS 16949 since 2016. It builds on ISO 9001 but adds automotive rules. It asks for documented continuous improvement, with audits every 6 to 12 months, shorter than the yearly ISO 9001 surveillance. We run APQP, PPAP, FMEA, full traceability, and change control under this system. APQP for a new automotive PCBA program can span 24 to 36 months from concept to production. So a long-term supplier bond matters more than the lowest price on day one. I plan each program with the client from the start, and my dedicated engineers stay with the project the whole way. This 1-on-1 support is what sets me apart from order-platform competitors.
AEC-Q100 and AEC-Q200 Component Compliance Standards
AEC-Q100 and AEC-Q200 are the stress-test rules that qualify automotive components. AEC-Q100 covers integrated circuits. AEC-Q200 covers passive parts. AEC-Q101 covers discrete semiconductors, and AEC-Q102 covers discrete optoelectronics. Each part must pass its own AEC rule before the finished board counts as automotive grade. So I partner only with qualified component suppliers through original makers and tier-1 agents, all 100% genuine and traceable. AEC-Q100 covers seven main stress tests:
- Temperature cycling
- Biased humidity test
- High-temperature storage life
- Temperature humidity bias
- Autoclave pressure pot test
- Thermal shock
- Solderability
The full series needs 3 lots of 77 pieces each, 231 units total, with zero failures across 30+ stress tests. My BOM and supply chain team of 20+ professionals checks every part through IQC before it enters the line.
In-Circuit and Flying Probe Testing Protocols
In-circuit and flying probe testing check electrical continuity and isolation on the board. ICT uses a bed-of-nails fixture and reaches 85–95% of board nodes. It tests component values, finds shorts and opens, and checks IC orientation at 100–200 points per second. The flying probe uses moving probes and needs no fixture, so it fits low-volume prototype runs where fixture cost is too high. The flying probe can find opens, shorts, resistance off by more than ±5%, and capacitance off by more than ±10%. Here is how I choose:
- Prototype or low volume: flying probe, no tooling cost
- High volume: fixture-based ICT, faster throughput
- Both: catch opens, shorts, and value drift
Every automotive board gets 100% electrical test plus dual AOI inspection. AOI catches visible faults like bridging, and electrical test catches hidden opens and shorts. The two methods cover different failure modes, so I run both.
Thermal Cycling and Vibration Environmental Stress Screening
Thermal cycling and vibration screening prove a board survives the road. Thermal cycling holds the board in one chamber while temperature swings between extremes, stressing internal vias and planes. Thermal shock moves the board between a hot and a cold chamber within seconds, with gradients over 100°C per minute, stressing surface parts and joints. AEC-Q100 Grade 1 asks for 1,000 cycles from -40°C to +125°C with no interconnect failure. I also run temperature-humidity tests, often 85°C at 85% relative humidity for 1,000 hours, to copy years of real exposure. Vibration screening covers 5–50 G at 10–2000 Hz. Three common vibration faults I screen for are solder joint fatigue at large BGA corners, lead or termination fracture, and via barrel cracking. I add burn-in for mission-critical ECUs and ADAS boards, running 48–168 hours at 85–125°C to remove early-life failures.
Full Traceability and Supply Chain Assurance for Automotive PCB Programs
LZJPCB gives full traceability from raw material to finished board, with lot and serial records for every automotive order. We supply PPAP documentation, run supplier audits with a D-grade elimination system, and source from original makers and tier-1 agents across Shenzhen and Indonesia for supply chain redundancy.
Michael’s biggest pain is tracking production progress and quality control across a long supply chain. I built our system to fix that. Automotive boards need a lot of traceability down to the panel level, and often serialization on each board, for recall and warranty work. My factory records every step. Below I cover lot-level traceability, PPAP documents, and how I keep the supply chain stable when a part goes obsolete.
Lot-Level Traceability from Raw Material to Finished Board
Lot-level traceability follows each board from raw material to shipment. I record lot and serial numbers, machine settings, reflow profiles, process parameters, AOI, SPI, X-ray, and test results, operator IDs, work orders, and build times. This supports failure analysis, warranty handling, regulatory compliance, and continuous improvement. Serialization lets me tie build parameters and component lot numbers to one unique board ID, so I can find root cause when a board fails in system test. My base materials come from Shengyi, Isola, Nan Ya, ITEQ, KB, Kingboard, and Jinguo, all UL and RoHS traceable. My warehouse runs FIFO with temperature, humidity, and ESD control. When a customer asks where a board came from, I can answer with records, not guesses. That removes the blind spot Michael worries about.
PPAP Documentation and Production Part Approval Process
PPAP, the Production Part Approval Process, is the document package that proves a part is ready for production. It needs 19 to 20 documents and samples, with approval times of 2 to 6 months. That makes late supplier changes nearly impossible without delaying a vehicle launch. The package goes well beyond a basic cert. It usually includes:
- PFMEA, failure mode and effects analysis
- Control plan and process flow diagram
- Capability studies with Cpk data
- GR&R measurement system studies
- Material certs and dimensional results
I target Cpk of 1.33 or more on critical parameters and 1.67 on safety-critical features. I also build to IPC-6012DA, the automotive addendum for rigid boards, which adds thermal cycling and vibration testing and 100% electrical test for safety-critical boards. For safety functions, I support ISO 26262 ASIL levels from A to D.
Supply Chain Redundancy and Raw Material Sourcing Strategy
Supply chain redundancy means I keep more than one path for parts and materials. Automotive programs run 10 to 15 years, far longer than the 2 to 3 years of consumer electronics. So component obsolescence management is a planned function, not a reaction. I keep tens of thousands of stock items and source globally across Shenzhen and Indonesia. My procurement covers original makers plus tier-1 agents, all genuine and traceable. I also offer alternative component selection and full BOM material solutions when a part goes end-of-life. My supplier management runs annual audits with a D-grade elimination system, so weak suppliers drop out. My global manufacturing bases in Shenzhen city, Ji’an, Changsha, and Indonesia give production flexibility, which directly answers clients’ needs to serve different markets. If one site is full, I shift work to another and keep the program moving.

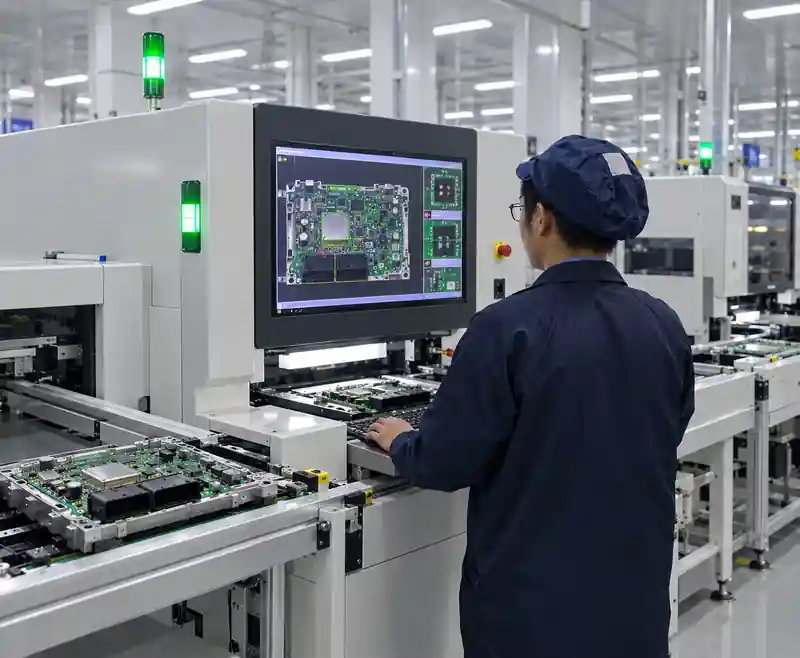

Why Choose LZJPCB for Automotive PCB
Choose LZJPCB for automotive PCB because we hold IATF 16949 plus ISO9001, ISO14001, UL, and CUL, and run high-reliability work for boards like automotive T-BOX mainboards and motor drive boards. We give dedicated engineer support, full traceability, and fast lead times, with proven work for clients like Sungrow Power and Hikvision.
I apply the same zero-defect discipline to every automotive board. We hold IATF 16949, earned in 2023, on top of ISO9001, ISO14001, UL, CUL, RoHS, and REACH. We have built automotive T-BOX mainboards, motor drive boards, gateway control boards, and 14-layer drone main boards. Many companies are looking for automotive PCB manufacturers, check for industry experience and the right certs first, and I meet both. Below I show the capabilities that back this up.
LZJPCB Manufacturing Capabilities
LZJPCB manufacturing capabilities span PCB design, PCB and FPC fabrication, PCBA assembly, and full BOM procurement under one roof. I run four global bases in Shenzhen, Ji’an, Changsha, and Indonesia. My design team holds 50+ engineers, with 30+ holding 5 to 12 years of experience, and we work 7×24 in parallel. My fabrication base in Ji’an covers 15,000㎡ with 200+ staff, building 2,500+ models and 50,000+ sqm a month. Doing fabrication and assembly in one place removes the gap between separate shops that causes delays and board errors. A fab-only shop will not run DFA checks for assembly fit, but I do.
| Capability | Specification |
|---|---|
| PCB layers | 1–40L prototype, 1–32L mass |
| Impedance control | ±5% |
| Max copper | 12oz |
| Min trace/space | 3/3mil |
| SMT placement | 8M/day, ±0.04mm |
| On-time delivery | 99%+ |
My dedicated engineers support custom automotive development, so the board does exactly what the client needs. Most Automotive PCB manufacturers only offer order platforms with no 1-on-1 service. That hands-on support is why clients trust me with safety-critical automotive programs.
FAQ for Automotive PCB Purchasing and Engineering Teams
What is the Typical Lead Time for Automotive PCB Prototypes?
Automotive PCB prototype lead time runs from 12 hours to 7 days, based on layer count. Simple single and double-sided bare boards finish in 12 to 24 hours. A 4-layer board takes 24 hours expedited, and 6-layer takes 48 hours. Fabrication plus assembly for 1–6 layer boards finishes in up to 48 hours. More complex 6 to 16 layer boards with advanced features take 3 to 7 days. Here is my prototype timeline:
- Single/double-sided bare board: 12–24 hours
- 4-layer board: 24 hours expedited
- 6-layer board: 48 hours
- Fab plus assembly, 1–6 layers: up to 48 hours
- 6–16 layers with advanced tech: 3–7 days
Kitted PCBA materials go online within 2 hours, and urgent orders get a 7×24 response. I keep my on-time delivery rate above 99%, since waiting weeks for validation is not acceptable for new product work.
How Do You Manage Quality Consistency Across High-Volume Orders?
I manage quality consistency through IATF 16949 process control, statistical process control, and 100% testing on every board. I target under 50 PPM defects, the Tier 1 level. Each board gets 100% electrical test plus dual AOI inspection. I add SPI before placement, X-Ray for BGA and leadless joints, and microscope checks on each placement. My factory increasingly uses Industry 4.0 and AI defect prediction at AOI, which cuts false flags by 20–35% and shortens the rework loop. Full traceability ties every board to its lot, machine settings, and test results, so I can act fast if a trend drifts. My base material comes from audited suppliers, and my annual audits with a D-grade elimination system keep the input steady. Steady input plus tight process control plus full inspection gives steady output, batch after batch.
What DFM Checks Do You Perform for Automotive PCB Designs?
I perform DFM checks before any automotive board goes to fabrication. My dedicated engineers review the design data early, during the layout phase, so we catch issues before they cost time. DFM and DFA analysis together prevent both manufacturing and assembly problems. My checklist covers:
- Trace width, clearance, pad size, and via structures against design rules
- Enough spacing around fine-pitch parts for AOI and rework access
- Standardized component packages to simplify assembly and sourcing
- Thermal path planning for high-power parts, away from heat-sensitive parts
- Test points and connectors for in-circuit and functional testing
I share findings with the client and give layout feedback. When a client asks for IPC Class 3 compliance, I verify the design meets it. This collaborative DFM, backed by my 7 years and 300+ projects, means the board is right the first time. That saves the client money and protects the vehicle program schedule.
