Military PCB Manufacturer
LZJPCB manufactures and assembles custom military electronics PCBs from controlled customer data. Engineering closes the material, stackup, special-process, documentation, traceability and verification route before release, giving procurement and engineering teams one accountable PCB and PCBA package.
- PCB Manufacturing Since 2006
- 50+ Engineers
- 4 Manufacturing Bases
- PCB + PCBA Integration
Military PCB Manufacturing Capabilities
Screen the construction against published production baselines, then use the quotation to lock the exact material, stackup, tolerances, traceability, testing, special processes and documentation.
| Qualification item | Published baseline | Controlled RFQ output |
|---|---|---|
| Layer count | 1–40 layers; routine production baseline up to 32 | Accepted stackup and lamination route |
| Trace / space | 3 / 3 mil safe manufacturing baseline | Copper weight, line class and etch review |
| Mechanical drill | 0.10 mm minimum baseline | Finished-hole and plating requirement |
| Board thickness | 0.20–17.50 mm published PCB range | Finished tolerance stated in quotation |
| Copper | Up to 12 oz for accepted constructions | Current, plating and thermal review |
| Controlled impedance | Target control to ±5% | Approved stackup and coupon plan |
| Materials | FR-4, High-Tg, Rogers, PTFE, RCC and accepted hybrids | Exact grade, supplier and substitution rule |
| Flex capability | 1–8 layers; 0.06–0.40 mm; 2 mil minimum trace baseline | Flex structure and bend-area review |
| Traceability | Material, lot, process, inspection and revision linkage | Named record package before order |
Etch-Back & Special Process Requirements
Etch-back is not treated as a blanket capability. A related RFQ is accepted only after the structure, process route, qualification need, inspection method and release records are confirmed.
- Applicable structure and etch-back depth supplied
- Microsection and acceptance criteria identified
- Process owner and evidence package confirmed
Military & Law Enforcement PCB Manufacturing
Controlled configuration, traceable materials, documented changes and repeat-build discipline matter more than a generic “military-grade” label.
LZJPCB manufactures the accepted PCB or PCBA data package and keeps the agreed material, process, inspection, test and change records linked to each build.
Specialized PCB Technologies for Military Electronics
Rigid-flex and RF/microwave boards solve different system risks. Each route is reviewed against its own material, geometry, reliability and verification requirements.
High-Reliability Rigid-Flex PCB for Military Electronics
Rigid-flex construction can reduce connector count and fit controlled interconnects into folded spaces. Reliability depends on the released material set, flex geometry, transition design, inspection and acceptance criteria.
- Rigid and flex stackups locked together
- Bend and transition regions reviewed
- Material, process and electrical records linked
RF & Microwave PCB for Military Applications
RF and microwave builds lock the low-loss material, copper profile, dielectric thickness, impedance geometry, connector launch and critical manufacturing tolerances.
- Rogers, PTFE or accepted hybrid route
- Material substitution requires approval
- Impedance and RF-critical dimensions recorded
Military PCB Design & DFM Support
Engineering reviews supplied design data for manufacturability, assembly, inspection and documentation; full system design, circuit design or thermal simulation is not implied.
The review cross-checks stackup, material, impedance, isolation, RF constraints, mounting, connectors, assembly access, test points, drawings and required records.
Military PCB Thermal Management
Manufacturing DFM reviews copper distribution, thermal vias, material and board thickness, heat-spreader or chassis interfaces and manufacturability in high-current or high-heat areas.
- Thermal inputs and limits come from the customer
- PCB construction and mechanical interface are reviewed
- No unlisted whole-system thermal simulation claim
Military PCB Standards, Specifications & Reliability
The contract, customer quality plan and applicable revision define the materials, processes, inspections, records and supplier qualification. A keyword never creates an automatic certification claim.
Military-Grade & Mil-Spec PCB Requirements
“Military-grade” usually summarizes project-specific reliability, material, process, test, documentation and traceability requirements. It is not one universal laminate grade or automatic approval.
- Contract and customer requirements govern
- Acceptance criteria belong in the order package
- Supplier evidence is reviewed, not assumed
MIL-PRF-31032 PCB Fabrication Requirements
MIL-PRF-31032-related work requires review of the applicable product, process, qualification, documentation and supplier status before any compliance statement is made.
Custom Military PCB & Prototyping
Engineering samples and small production lots establish the accepted construction, special processes, verification and document route before repeat production.
Engineering records DFM closure, the accepted stackup and material, inspection results, customer verification feedback and approved changes. The next lot follows the released revision.
Build the accepted data and document every exception.
Inspect, test and close customer feedback.
Transfer only the approved revision and route.
Military PCB Manufacturing & Assembly
One controlled release package can connect PCB fabrication, component sourcing, SMT/THT work, inspection, test, traceability and configuration management.
The quotation defines sourcing ownership, approved alternates, component lot records, stencil and placement data, soldering, inspection, accepted rework and customer test responsibilities.

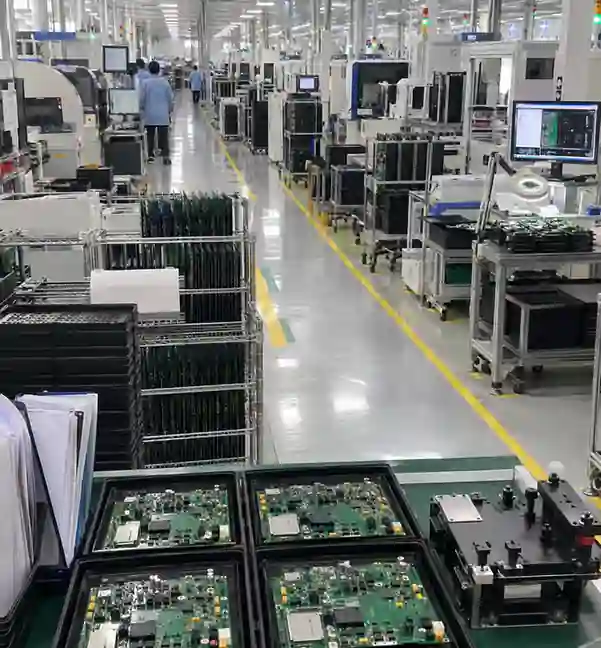

Why Choose Us as Your Military PCB Manufacturer
The military-project risk that matters most is losing the approved configuration between contract review, the first build and repeat production.
Instead of repeating general capacity or inspection claims, this evidence chain shows how the exact specification, approved deviation and production revision reach engineering, purchasing, fabrication, assembly and final release together.
Military PCB Case Studies
Only non-restricted and customer-authorized facts should be published. These slots preserve the decision evidence without inventing programme names or outcomes.
Provide a non-restricted application category, released fold architecture, inspection route and measurable manufacturing result.
Provide the approved low-loss material, impedance or geometry control, verification method and publishable result.
Provide the released configuration, sourcing scope, assembly inspection, test and traceability result without restricted identifiers.
Get a Military PCB Quote
The quotation is issued against the actual specification, construction, special-process, assembly, testing and documentation scope.
Engineering will identify accepted requirements, open questions, exceptions and evidence items before production release.
- Gerber or ODB++, drill, netlist and fabrication drawing
- Stackup, material, copper, thickness and impedance
- Applicable specification, revision and special processes
- Traceability, retention, change control and document scope
- BOM, AVL, assembly drawings and test procedure
- Prototype / production quantity and requested schedule
Frequently Asked Questions About Military PCB
Concise answers that separate real project requirements from unsupported “military-grade” marketing claims.
What Is a Military PCB?
A military PCB is a printed circuit board manufactured for a defined military or defense electronic function. Its reliability, materials, manufacturing, inspection, documentation and supplier-qualification requirements come from the project specification, contract and customer quality plan.
Does “Military-Grade PCB” Mean One Universal Standard?
No. There is no single material or construction that automatically applies to every military PCB. Buyers must review the exact specification and revision, customer requirements, manufacturing route, inspections, records and supplier qualification for the programme.
Send fabrication data, special-process requirements, documentation, assembly scope and verification criteria for an exact response.
