Our China
Manufacturing
Facilities & Capabilities
Since 2006, LZJPCB has built world-class PCB manufacturing infrastructure across four production bases in China and Indonesia -- delivering precision, speed, and scale to global B2B clients.
28,000sqm
Total Factory Area
500+
Staff Members
18yr
Est. 2006
4
Production Bases
4 Strategic Production
Bases Worldwide
Our multi-base layout ensures redundancy, flexibility, and cost efficiency -- enabling us to serve global clients with speed and scale.

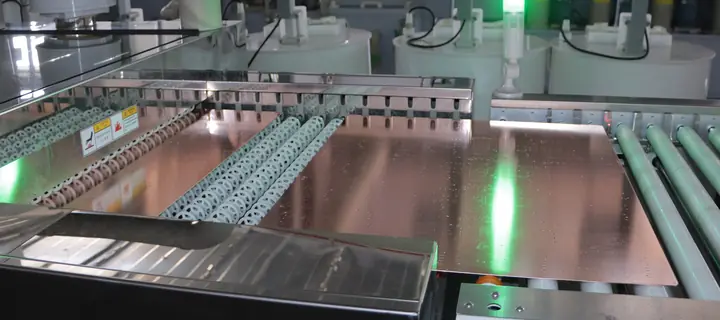

Shenzhen, China
Headquarters and R&D center. Advanced PCB prototyping, engineering support, and client services hub.

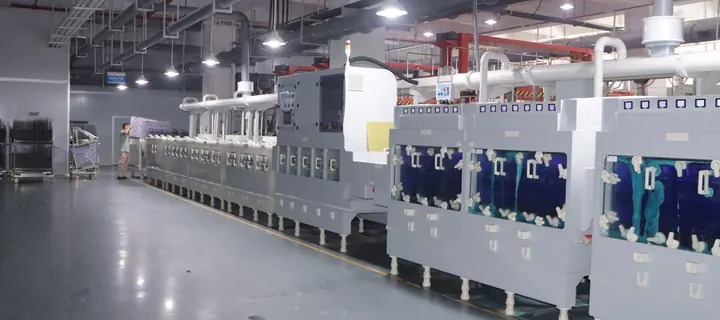

Ji'an, Jiangxi
Largest production base. Full-process PCB fabrication lines and high-volume SMT assembly operations.

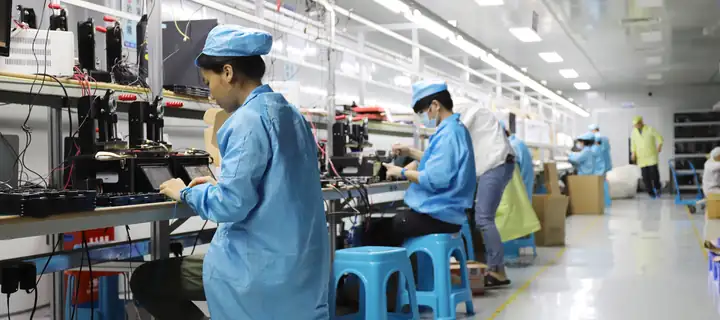

Changsha, Hunan
Specialized SMT assembly facility supporting mid-volume production with rapid turnaround capabilities.

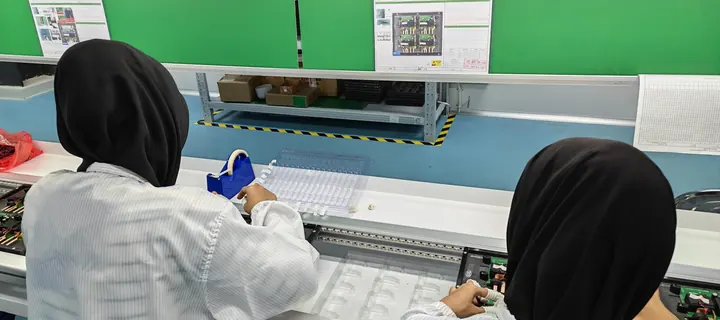

Indonesia
Overseas production base serving Southeast Asia markets with competitive local manufacturing advantages.
Monthly Capacity &
Production Lines
50,000sqm
PCB Monthly Capacity
3 full-process PCB production lines operating at scale, supporting both prototype and mass production runs.
8,000sqm
FPC Monthly Capacity
2 dedicated FPC production lines for flexible and rigid-flex circuits, serving wearable and mobile markets.
200M+
Component Placements/mo
20+ SMT lines with advanced pick-and-place machines, supporting high-mix and high-volume PCBA production.
Our Workforce
500+
Total Staff
50+
PCB Design Engineers
100+
PCBA Factory Staff
20+
Supply Chain Team
Advanced Manufacturing
Technical Parameters
Precision engineering at every layer -- our technical capabilities cover the full spectrum of PCB complexity.
Core Technical Specifications
Special Processes
Quality Performance
State-of-the-Art
Production Facilities
From lamination to final inspection, every process is optimized for precision, efficiency, and quality.

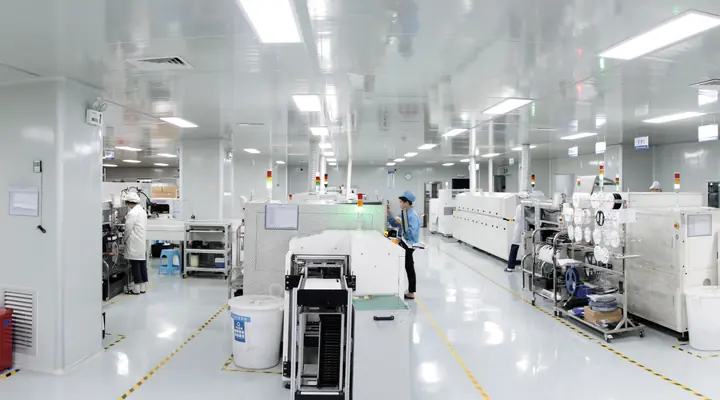

20+ SMT Production Lines
High-speed pick-and-place machines capable of 200M+ component placements per month, supporting 0201 and fine-pitch BGA components.

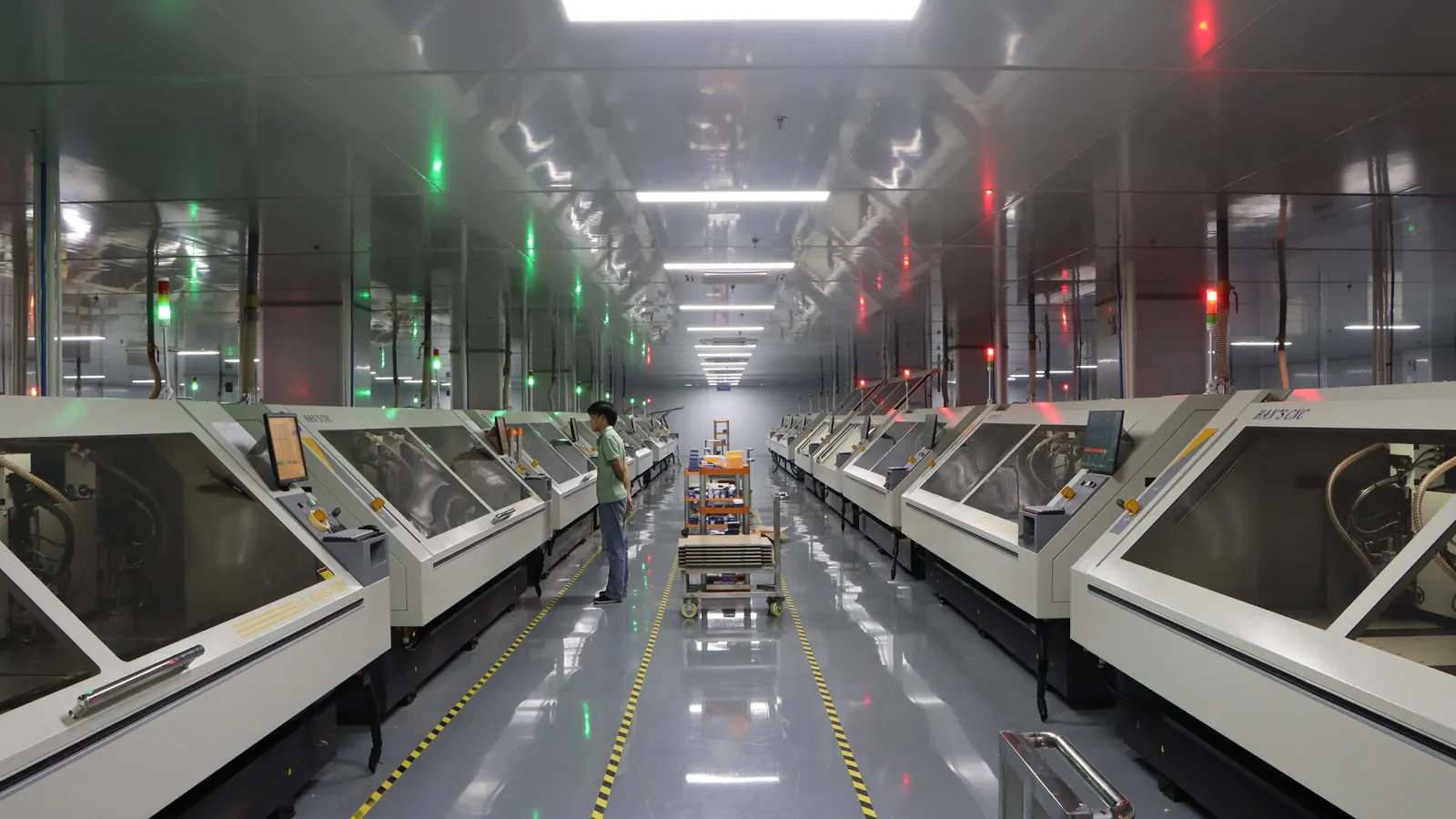

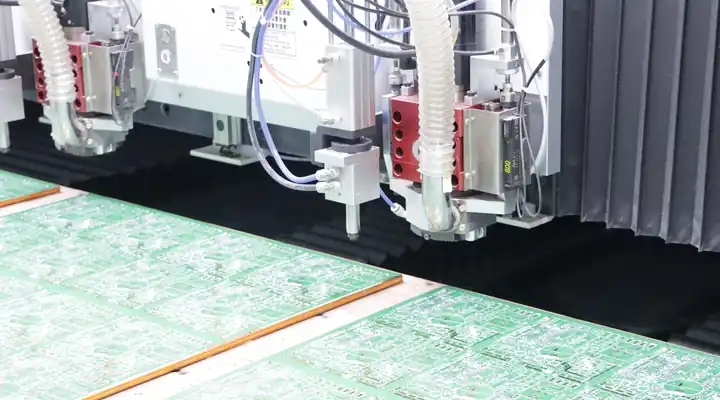

3 Full-Process PCB Lines
Complete PCB fabrication from inner layer imaging to final surface finishing, supporting 1-40 layer boards with advanced lamination presses.

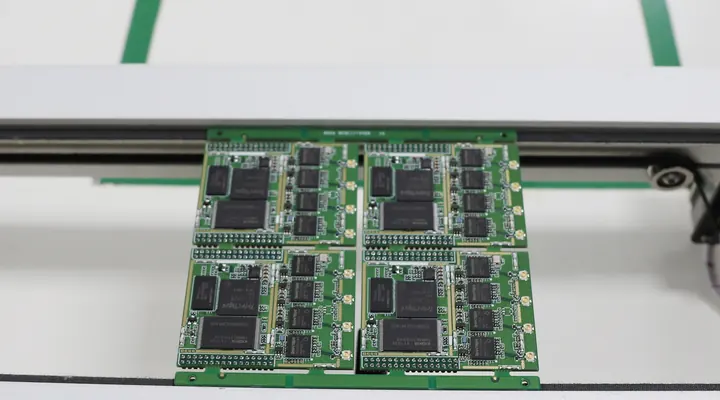

100% AOI & X-Ray Inspection
Dual AOI stations, 3D SPI, X-ray for BGA and buried vias, flying probe electrical testing, and full traceability from IQC to shipment.

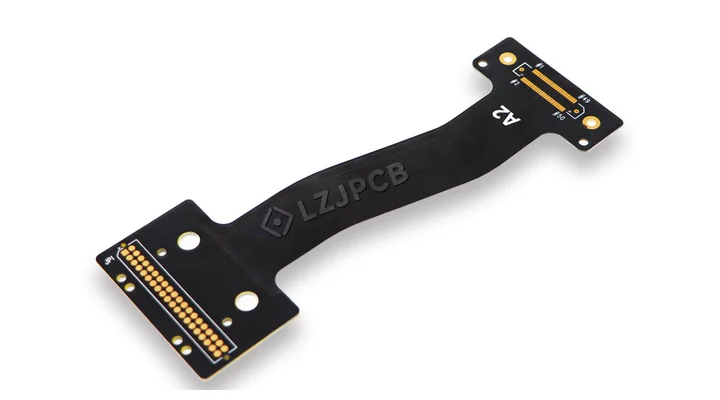

2 Dedicated FPC Lines
Specialized flexible circuit production with 8,000 sqm/month capacity, serving wearables, mobile devices, and automotive applications.
50+ PCB Design Engineers
In-house engineering team providing free DFM reviews, PCB layout design support, and impedance calculation -- accelerating your time to market.

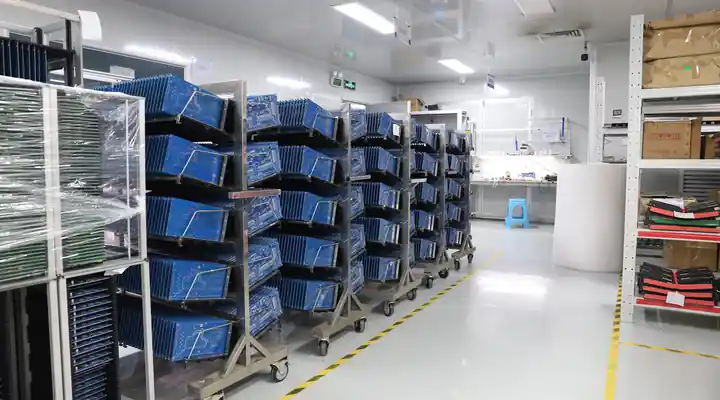

Direct Material Supply Network
Long-term direct agreements with top-tier material suppliers for copper-clad laminates, inks, and chemicals -- ensuring 15-20% cost advantage.
Full Closed-Loop
Quality Control
Every PCB passes through a rigorous multi-stage inspection process -- from raw material to final shipment.
IQC
Incoming quality control for all raw materials -- copper-clad laminates, prepregs, and chemicals verified before use.
In-Process SPC
Statistical process control monitoring at every critical production stage -- etching, drilling, plating, and lamination.
AOI & X-Ray
100% dual AOI inspection for bare PCBs, 3D SPI for solder paste, and X-ray inspection for BGA packages and buried vias.
100% Electrical Test
Flying probe and fixture-based electrical testing on every board, with optional functional testing and aging tests per client requirements.
IPC Class 2 & Class 3 Compliant
Full traceability maintained throughout the entire production process from raw material to shipment.
Internationally Recognized
Quality Standards
Our certifications reflect our commitment to quality, safety, and environmental responsibility across every industry we serve.
ISO 9001
Quality Management
International standard for quality management systems across all production processes.
IATF 16949
Automotive Quality
Automotive industry quality management standard for Tier 1/2 supplier qualification.
ISO 13485
Medical Devices
Medical device quality management system for high-reliability medical electronics manufacturing.
ISO 14001
Environmental Mgmt.
Environmental management system ensuring sustainable and eco-friendly production practices.
Additional Compliance & Standards
Ready to Work With
Our China Factory?
Upload your Gerber files and BOM to get an instant quote. Our engineers will review your design and respond within 24 hours.
12h
Prototype Turnaround
Free
DFM Review Included
15-20%
Lower Cost vs. Average
Trusted by global electronics manufacturers, EMS providers, and R&D teams · info@lzjpcb.com
