Home automation and smart home PCB

Home Automation PCB Manufacturer

LZJPCB manufactures custom PCB and PCBA for smart home control, power, communication and interface electronics. Engineering closes the stackup, wireless keep-out, assembly and verification inputs before issuing a buildable construction and fixed quoted ship date.

  • Since 2006
  • 50+ Engineers
  • PCB + PCBA
  • 100% Electrical Test
Manufacturing baseline

Home Automation PCB Manufacturing Capabilities

The capability table gives purchasing and engineering a fast go/no-go screen. The quotation then records the exact material, stackup, tolerances, assembly route and inspection package.

CapabilityProduction baselineRFQ output
Layer countUp to 40 layers 待替换数据Accepted stackup
Trace / space3 / 3 mil safe manufacturing baselineGeometry and copper review
Mechanical drill0.10 mm minimum baselineHole and annular-ring result
Controlled impedanceTarget control to ±5%Stackup and coupon plan
Board thickness0.20–17.50 mm general PCB rangeFinished tolerance stated
CopperUp to 12 oz for accepted constructionsCurrent and thermal review
MaterialsFR-4, High-Tg, Rogers, PTFE, metal core, RCC and approved hybridsExact material grade locked
Assembly01005, 0.35 mm BGA and PoP on accepted buildsPackage and inspection route
VerificationAOI, 100% bare-board electrical test and accepted PCBA testingReleased quality record
Engineering handoff

Home Automation PCB Design & DFM Support

LZJPCB reviews supplied production data for manufacturability, assembly and test. This support does not claim full circuit design or PCB layout ownership.

待补充 · 2D DFM FLOW
Controlled DFM handoff Resolve power, wireless and mechanical conflicts before release

Engineering cross-checks stackup, component clearance, power and signal partitioning, RF keep-out, antennas or modules, isolation, connector location, panelization and test access.

FilesGerber / ODB++, drill and drawing
StackupMaterial, thickness and impedance
WirelessAntenna keep-out and reference planes
PowerCurrent, isolation and thermal path
AssemblyPackage, stencil and connector access
TestProgramming and functional fixture access
The engineering response closes each issue with an acceptance condition or precise correction request.
Smart home project fit

Home Automation PCB Applications

Match the PCB construction and verification plan to the product's control, power, communication, interface and enclosure constraints.

Control and hub electronics

Multiple communication, processing and interface functions reviewed for stackup and test access.

Control / interfaceProgramming access
Sensor and access products

Low-noise sensing, local power and communication modules aligned with compact assembly.

Sensor zoneModule assembly
Lighting and actuator control

Power switching, current path, isolation and connector loads translated into PCB controls.

Switching powerThermal path
Connected wall and room devices

Mechanical envelope, antenna clearance, buttons, displays and connectors reviewed together.

Mechanical fitWireless keep-out
Verification strategy

Smart Home PCB Testing & Reliability

Testing follows the product’s real electrical, wireless, power and environmental risks. LZJPCB defines the manufacturing checks and executes accepted PCBA tests against a customer-approved procedure.

Condition-defined validation

Smart Home PCB Reliability Testing

Reliability testing starts with the stated operating environment and expected stress. The accepted plan must connect the tested revision, test condition and pass criterion.

1 · Define exposure

Temperature, humidity, supply, communication, mechanical load and duration come from the project requirements.

2 · Approve the method

The customer procedure or an agreed method fixes samples, equipment, limits and acceptance criteria.

3 · Link the evidence

Results stay tied to the tested PCB or PCBA revision and production lot.

待补充:测试设备/动作照片、测试条件、样本数量、报告编号及经批准的结果。
01
Material and files

Identity, revision and stackup

RECORD
02
Bare-board geometry

AOI and dimensional review

RECORD
03
Electrical continuity

100% netlist verification

RECORD
04
Assembly process

SPI, placement, solder and AOI

RECORD
05
Functional behavior

Customer test procedure

RECORD
06
Release record

Result, lot and revision

RECORD
Evidence package One test plan from bare board to assembled function

The accepted RFQ assigns a method, acceptance criterion and record to each required check. Environmental or life testing uses the supplied condition and duration, never a generic smart-home profile.

  • AOI and 100% bare-board electrical test
  • 3D SPI and AOI for accepted PCBA
  • X-Ray for accepted hidden-joint packages
  • Functional test against customer procedure
  • Lot, revision and test traceability
ISO 9001ISO 14001IATF 16949ISO 13485UL / CULRoHSREACH
待补充:证书编号、有效期、覆盖实体/工厂和适用范围;不得视为本项目自动适用认证。
Temperature, humidity, supply, communication, mechanical and service-life conditions must be stated before reliability validation is accepted.
Supplier decision

Why Choose Us as Your Home Automation PCB Manufacturer

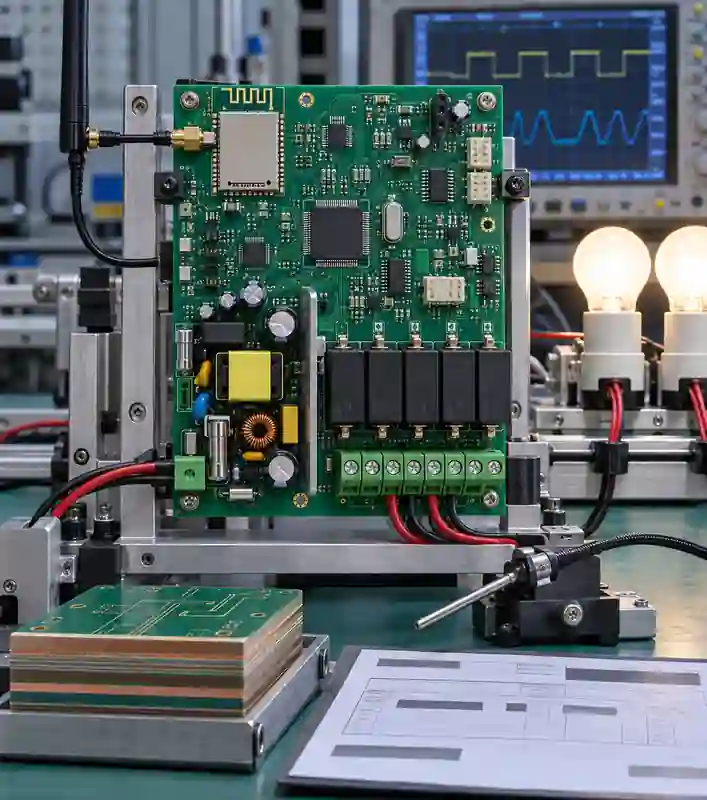

Control the interaction between wireless, power, mechanical and test constraints through one released smart-home build package.

One smart-home-specific control chain Wireless-to-power boundary control from DFM to production release

Smart-home boards often combine radios, switching power, sensors and enclosure-limited interfaces. LZJPCB keeps these interacting constraints in one revision-controlled engineering chain.

01
Constraint map

Antenna keep-out, reference planes, isolation, current paths, connectors and test access are marked against the supplied files.

02
Build release

Accepted stackup, material, PCB geometry, assembly route and open exceptions are frozen to one revision.

03
Verification record

Bare-board, assembly and approved functional results remain linked to the released lot and revision.

待补充:真实审图界面或工程文件、对应 PCB/PCBA 实物,以及同一版本的测试/放行记录。
Approved project evidence

Home Automation PCB Case Studies

The following case slots avoid invented customer claims. Replace them only with approved, non-confidential records.

Approved project recordConnected control-board case slot

Record size, layers, wireless interface, DFM issue, test route and approved result.

ApplicationApproved public category
ConstraintWireless / power / I/O
ResultApproved measurable outcome
Approved project recordSensor-module case slot

Show the supplied module, assembly density, noise-control input and released verification result.

FunctionApproved sensor category
AssemblyModule / connector route
ResultApproved test evidence
Approved project recordPower-control case slot

Publish current, isolation, thermal and functional-test evidence without exposing the customer design.

LoadApproved electrical requirement
ConstructionReleased PCB route
ResultApproved validation record
Publication rule: Do not publish customer names, product identities, drawings or performance results without written approval.
Engineering RFQ

Get a Home Automation PCB Quote

A complete RFQ turns the smart home design into a specific, testable manufacturing offer.

Engineering RFQ Send the PCB, assembly and test data together

Engineering returns one accepted build package instead of separate PCB and PCBA assumptions.

  • Gerber or ODB++, drill, netlist and fabrication drawing
  • Stackup, material, thickness, copper and impedance
  • Wireless module, antenna keep-out and EMI notes
  • BOM, AVL, centroid and assembly drawings
  • Programming, functional and reliability test requirements
  • Prototype / production quantity and requested ship date
You receiveAccepted construction, listed exceptions, price, fixed quoted ship date, assembly route and verification scope.
No files selected.

Files and project data are sent directly to the LZJPCB RFQ endpoint.

Buyer questions

Frequently Asked Questions About Home Automation PCB

Direct answers that keep manufacturing scope, DFM and testing responsibilities clear.

What Is a Home Automation PCB?

A Home Automation PCB is a printed circuit board used to carry control, power, communication and interface electronics in a smart home product. The correct board type and construction come from the actual electrical, wireless, mechanical and environmental requirements.

What Should Be Reviewed Before Manufacturing a Smart Home PCB?

Review file completeness, stackup and material, power and isolation, signal and RF reference paths, antenna keep-out, module and connector placement, assembly access, programming, functional test and environmental requirements. LZJPCB performs this as DFM and manufacturing engineering, not as an unlisted full-layout service.

Turn the smart home design into a controlled production package.

Send the PCB files, wireless constraints, assembly data and test requirements for an exact engineering quotation.

Start Your RFQ
