Double-Sided PCB Manufacturer
A 2-layer PCB gains routing space on both sides, but uncontrolled return paths, vias or plating can turn a simple board into a repeat-production problem. LZJPCB reviews the stackup, copper, PTH / via structure, finish and assembly route before your double-sided PCB is released.
- Double-sided / 2-layer PCB
- PTH & via interconnection review
- Prototype to repeat production
- Fabrication + assembly route
Double-Sided PCB Manufacturing Capabilities
A two-layer label does not define the laminate, thickness, copper, via, finish or tolerance behind the board. Qualify the complete build first so prototype, assembly and repeat orders all use the same released requirements.
| Manufacturing item | Current page scope | Release decision |
|---|---|---|
| Layer count | Double-sided / 2-layer PCB | Two circuit layers connected by approved PTH / via structures where required |
| Base material | FR-4 and project-specific laminate routes | Material code, Tg and compliance matched to service conditions |
| Finished thickness | 待补充 · supported range and tolerance | Core / laminate, copper, finish and mechanical fit released together |
| Copper weight | 待补充 · base and finished copper range | Current, etching, spacing and plating requirements reviewed |
| Trace / space | 待补充 · 2-layer production limits | Geometry checked against copper, yield and repeatability |
| Hole / via | 待补充 · drill, finished hole and annular-ring limits | Plating, aspect, clearance and continuity requirements confirmed |
| Surface finish | Project-specific options | Selected for assembly, contact, storage and environmental needs |
| Prototype & production | Engineering samples through repeat orders | Material, data revision and inspection plan remain linked |
| Assembly | Double-sided SMT / PTH reviewed when applicable | BOM, polarity, thermal profile, fixture and inspection inputs confirmed |
Engineering checks Gerber / ODB++, net data, material, thickness, copper, holes / vias, outline, finish, test and assembly notes. Missing factory-specific limits stay marked 待补充 until evidence is confirmed.
2-Layer PCB Design, Stackup & Planes
Two routing layers do not provide the dedicated reference planes available in a four-layer board. Decide where return current flows, how ground stays continuous and where vias change layers before routing density removes those options.
A practical two-layer layout often reserves as much uninterrupted ground as possible while short critical routes use the opposite side. If traces split the reference or force long return detours, “ground pour” alone does not create a reliable plane.
- Place components to shorten power and high-current loops.
- Preserve continuous return copper under critical signal paths.
- Use stitching vias deliberately where references change sides.
- Keep plane splits and narrow necks out of return-current paths.
- Move to four layers when routing and reference needs conflict.
2-Layer PCB Thickness
A 1.6 mm finished board is a common industry request, not a universal laminate recipe. Core / laminate thickness, copper, plating, solder mask and process tolerance must add up to the released nominal thickness and fit the enclosure, connector and fastener stack.
待补充：LZJPCB Double-Sided PCB supported thickness range and production tolerance.
Double-Sided PCB Materials & Construction
A double-sided copper-clad board becomes a finished PCB only after both copper layers, holes, plating, mask and finish are controlled as one construction. Material selection must follow the electrical, thermal, mechanical and compliance needs of the product.
FR-4 is a common laminate route for two-layer boards, but the final material code and Tg must match the product. Drilled holes are prepared and plated so vias and PTH leads connect copper on both sides; mask, legend and surface finish then protect and prepare the board for assembly.
Pattern, pads, planes and mask openings
Material code, Tg, thickness and compliance
Routing, reference copper and assembly lands
Electrical connection through the finished hole wall
Double-Sided PCB Manufacturing Process
The challenge is not etching two separate patterns—it is keeping both sides registered and electrically connected through reliable plated holes. Each process gate must preserve the data, material and acceptance criteria approved at DFM.
DFM, laminate, thickness, copper and tooling revision closed.
Both copper patterns formed with registration and geometry controls.
Tool, location, wall condition and debris controlled before plating.
Conductive barrel connects required top and bottom copper features.
Openings, dams, polarity and marking aligned to assembly data.
Pads protected and final outline routed to the approved drawing.
Continuity, isolation, dimensions, finish and shipment records closed.
Double-Sided PCB Prototyping
A prototype should answer manufacturing and product questions—not become a one-off build that cannot be repeated. Freeze the same material, stackup, via, finish and acceptance logic you expect production to follow.
Revision, stackup, drill, finish and test inputs confirmed
Fabricated from the proposed repeatable construction
Electrical, dimensional and assembly results reviewed
Approved inputs and changes remain under revision control
Double-Sided PCB Assembly
Components on both sides create a sequence problem: the second thermal cycle, gravity, fixture access and PTH insertion can affect the first side. Plan fabrication and assembly together so land patterns, mask, finish and process order support the same board.
Engineering reviews component side, polarity, package mass, thermal sensitivity, paste / aperture needs, selective fixtures, inspection access and test coverage. The result is an assembly sequence matched to the actual BOM and board—not a generic “double reflow” promise.
- Confirm top / bottom placement data and component orientation.
- Identify packages affected by the second thermal cycle or gravity.
- Sequence SMT, THT / PTH, manual and selective operations.
- Plan AOI, X-ray when applicable, functional test and rework access.
Double-Sided SMT, Reflow & PTH Assembly
One SMT side is commonly processed before the second, but side order depends on package weight, thermal exposure, stencil needs and fixture strategy. PTH components follow the agreed insertion and soldering route without assuming every board uses the same sequence.
Placement and reflow against approved profile inputs
Package retention and second-cycle exposure reviewed
Insertion, solder, cleaning, inspection and test route confirmed
Double-Sided PCB Applications
Two layers fit projects that need more routing and interconnection than a single-sided board but do not require dedicated internal planes. Choose from circuit density, return-path needs, current, assembly and lifecycle—not from layer-count cost alone.
Suitable when control, I/O and power routing can share two layers while keeping references and service clearances intact.
Fit signal: moderate routing + mixed connectors
Works when current loops, creepage, copper geometry and thermal paths can be resolved without internal planes.
Fit signal: defined power loops + manageable density
Useful for cost-sensitive interfaces and controllers when package density and EMC needs remain compatible with two layers.
Fit signal: compact functions + controlled interfaces
A good fit when analog, digital and connector routing can preserve return paths and separation on two copper layers.
Fit signal: moderate I/O + clear signal partitioning
Double-Sided PCB Quality Control
A two-layer board can pass visual inspection while still hiding an open net, weak hole wall or dimensional mismatch. Verify copper patterns, PTH / via interconnection and finished-board requirements against the released data.
Laminate, copper and revision matched to the traveler.
Opens, shorts, geometry and mask alignment reviewed.
Finished hole, annular ring and barrel condition checked to criteria.
Continuity and isolation verified against released net data.
Dimensions, finish, marking, documents and packing closed.

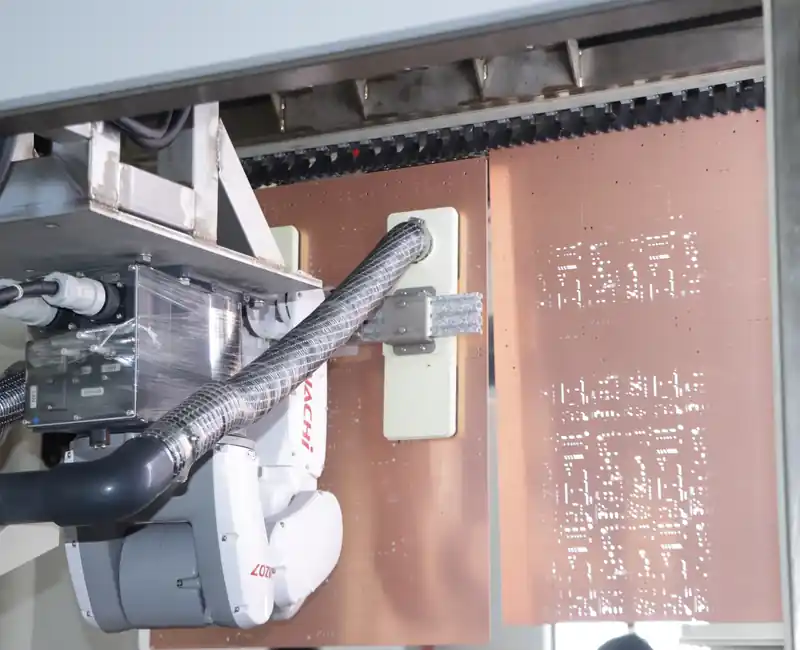

Why Choose Us as Your Double-Sided PCB Manufacturer
A mature two-layer supplier should make routine work predictable, not casual. Engineering review, controlled handoff and traceable inspection keep a cost-effective board from becoming expensive through revision, assembly or repeat-order failures.
Stackup, copper, PTH / via, finish and assembly risks closed before release.
Samples test the proposed repeatable construction and acceptance plan.
Approved inputs and change points remain tied to subsequent orders.
Double-Sided PCB Case Studies
A useful example records material, stackup, via / plating, quantity, assembly and test result. Customer-authorized evidence is still required, so these fields remain visible rather than being replaced by generic success claims.
待补充：application、material / Tg、thickness、copper、hole / via、finish、quantity、assembly、test and measurable result。
待补充
待补充
待补充
待补充：application、current requirement、material、copper、clearance、PTH / via、quantity、inspection evidence and result。
待补充
待补充
待补充
Get a Double-Sided PCB Quote
A low two-layer price can change when material, thickness, copper, holes, finish, quantity or assembly is reviewed. Answer the four questions below so each quote reflects the same build you intend to approve.
Frequently Asked Questions About Double-Sided PCB
Choose the lowest layer count that preserves routing, references, current and assembly requirements. Open the relevant question to compare construction choices before the detailed DFM review.
Single-Sided vs Double-Sided PCB
Choose single-sided when one conductor layer can complete the circuit and the assembly / jumper strategy remains practical. Choose double-sided when the design needs copper on both faces and plated interconnection for more routing flexibility or component access.
- Decision
- Single-Sided PCB
- Double-Sided PCB
- Conductor layers
- One circuit copper side
- Two circuit copper sides
- Interconnection
- No layer-to-layer via requirement
- PTH / vias connect required features
- Routing density
- Lowest, often needs jumpers or simpler placement
- Higher flexibility without internal layers
- Commercial fit
- Simpler construction when design permits
- Added process justified by routing / assembly needs
2-Layer vs 4-Layer PCB
Use two layers when routing and reference copper can coexist on the outer surfaces. Move to four layers when the design benefits from internal continuous references, more routing density or a more controlled power / return structure.
- Decision
- 2-Layer PCB
- 4-Layer PCB
- Routing space
- Two external routing surfaces
- Additional internal-layer options
- Reference strategy
- Ground / power share surface area with routing
- Internal continuous references can be assigned
- EMI / return paths
- Depends strongly on surface layout continuity
- Can provide closer, more continuous reference paths
- Cost decision
- Lower construction complexity when technically sufficient
- Higher construction cost may reduce layout compromises
