Prototype PCB Assembly Services
LZJPCB coordinates prototype PCB fabrication, component sourcing, SMT/THT assembly, first-unit inspection, defined testing and revision closure. The accepted build creates a controlled path from engineering validation into repeat low-volume production.
- No MOQ for samples
- 50+ engineers
- PCB + PCBA + BOM
- 4 production bases
Prototype PCB Assembly Capabilities
Prototype assembly must expose file, BOM, package, process and test issues quickly. The accepted build records every engineering action, component decision, inspection gate and result.
| Prototype input | Engineering control | Build output |
|---|---|---|
| PCB files | Stackup, panel, finish and assembly features reviewed | Released fabrication package |
| BOM | Exact MPN, package, availability and alternate status | Approved sourcing list |
| Assembly data | Centroid, polarity, drawing and special handling | Released program and work instruction |
| Verification | First-unit, inspection and functional limits | Named evidence and result |
| Revision | Actions and changes closed before next build | Controlled prototype baseline |
PCB Prototype Fabrication & Assembly
One coordinated route keeps the prototype PCB construction aligned with the BOM, assembly data and verification plan. Fabrication and assembly questions close on the same released revision.
LZJPCB supports custom 1–40 layer PCB fabrication, 100% bare-board electrical test, SMT/THT assembly and customer-defined functional testing within one accepted project scope.
Quick-Turn Prototype PCB Assembly
Prototype quick turn is a project schedule, not an unsupported universal day count. The ship date is fixed after files, PCB route, BOM availability, setup, assembly complexity, inspection and test responsibility are accepted.
| Schedule driver | Release condition | Deterministic output |
|---|---|---|
| PCB fabrication | Board files and construction accepted | Fabrication milestone |
| BOM availability | Exact parts and alternates approved | Material readiness |
| Assembly setup | Stencil, programs and work instruction ready | Assembly start |
| Test | Fixture, program, method and limits accepted | Verification slot |
| Shipment | Quantity and records reconciled | Fixed ship date |
Prototype to Low-Volume PCB Assembly
A successful prototype becomes a repeatable low-volume build only after the PCB revision, BOM, approved alternatives, assembly program, inspection gates, test limits and change rules are locked.
Every file correction, package issue, polarity change and alternate approval is recorded.
PCB, BOM, centroid, drawings, programs and test version share one release state.
First-unit findings, inspection records, rework and test results remain traceable.
Low-volume batches use the accepted process until a controlled change is approved.
Prototype PCB Assembly Applications
Prototype PCBA fits projects that need evidence for design, firmware, interfaces, environment or product integration before a production baseline is released.
Prototype PCB Assembly for Startups
Startup and new-product teams receive the same controlled BOM, file review, first-unit evidence, change record and test boundary as established programs. The service is a project route, not a separate quality tier.
- Small defined build quantity
- BOM and sourcing feedback
- Revision and test evidence
- Path to low-volume repetition

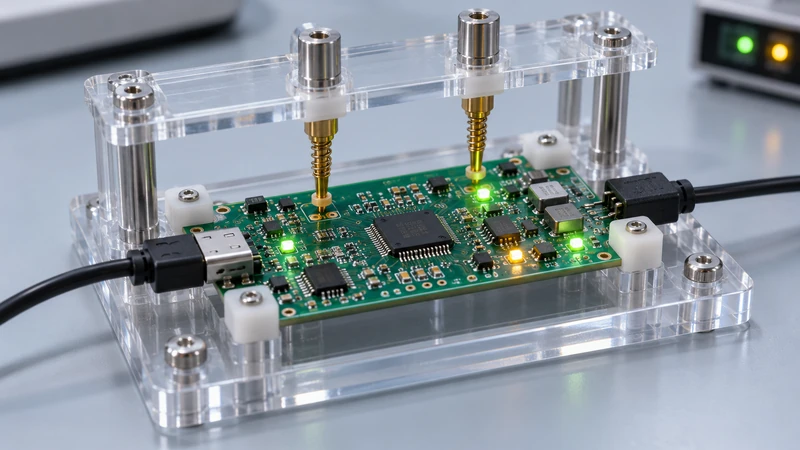

Verify electrical behavior, interfaces, power paths and assembly access on controlled hardware.
Close BOM, layout, package and test issues before a production release.

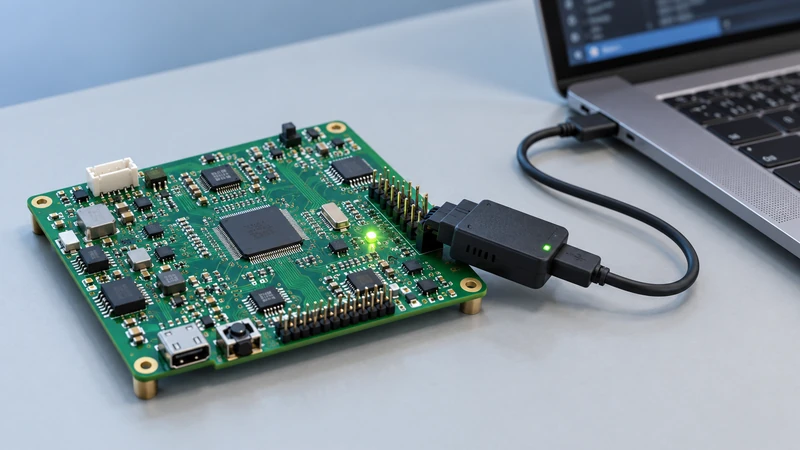

Provide stable, identified assemblies for programming and customer-defined functional checks.

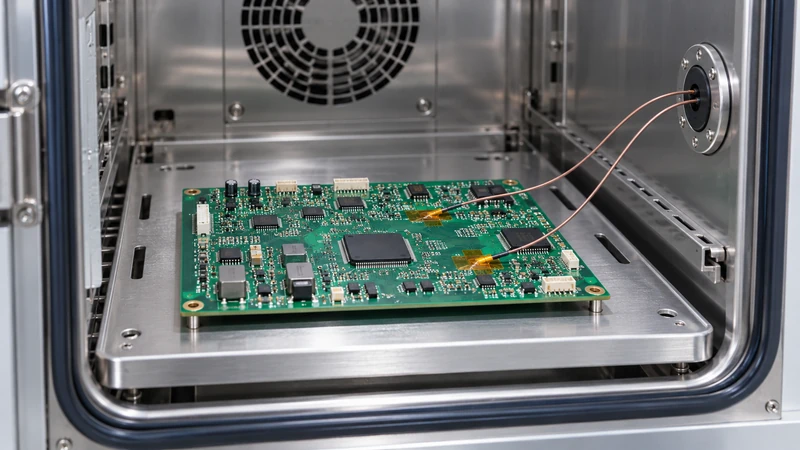

Build test articles from an accepted specification; environmental qualification remains with the named program and test owner.
Prototype PCB Assembly Quality Control & Testing
Prototype quality control must reveal design, BOM and process problems instead of hiding them behind a completed soldering operation. Every finding returns to a controlled action list.
Part identity, package, quantity and approved alternate status checked.
Placement, polarity, workmanship and assigned measurements verified.
Paste and visible assembly features checked at defined SMT gates.
Accepted hidden-joint packages receive the named inspection scope.
Customer procedure and acceptance limits control execution.
Rework, repeat inspection and revision disposition linked.
A detected issue is recorded against the exact board, BOM and assembly revision, then closed through an approved file, material, process or test action.
- Finding and affected references identified
- Responsibility and action recorded
- Rework and repeat verification linked
- Next-build baseline updated only after approval
Why Choose Us as Your Prototype PCB Assembly Manufacturer
Prototype value comes from the speed and accuracy of the learning loop. Evaluate the supplier through file review, sourcing, first-unit evidence, rework control, testing and the transition into repeat builds.
A useful prototype proves that fabrication, sourcing and assembly questions were closed before the first article—not merely that one board was built quickly.
Prototype PCB Assembly Case Studies
A prototype case must show the actual revision, quantity, assembly route, sourcing decision, detected issue, closed action and verified result. This page does not invent those facts.
The approved case connects the starting data to the engineering finding, first-unit evidence, revision change and authorized validation result.
Board revision, quantity, packages and sourcing model.
DFM, BOM, placement, soldering, test or interface finding.
Approved file, component, process, rework or test change.
Customer-authorized evidence and next-stage decision.
Get a Prototype PCB Assembly Quote
Send one controlled prototype package. The quotation returns accepted files, BOM responsibility, engineering actions, assembly and test scope, cost, price and fixed ship date.
Prototype cost is calculated from the PCB, components, setup, assembly complexity, inspection, testing and quantity in the accepted package.
- Gerber or ODB++ and fabrication drawing
- BOM with exact manufacturer part numbers
- Centroid or Pick-and-Place and assembly drawing
- Prototype quantity and next-stage quantity
- Full, partial or consigned sourcing model
- First-unit, test and target-schedule requirements
Frequently Asked Questions About Prototype PCB Assembly
These answers distinguish validation builds from locked production and explain how a prototype route supports later small batches.
Prototype PCB Assembly vs Production Assembly
Prototype assembly prioritizes engineering changes, BOM risk, setup, first-unit evidence and fast issue closure. Production assembly starts from locked files, materials, programs, inspection plans and repeatability controls. Neither stage is universally better; each serves a different release state.
Is Prototype PCB Assembly Available for Low-Volume Builds?
Yes. Prototype assembly can cover a small validation quantity, then transition into low-volume repeat builds after the PCB, BOM, assembly process, inspection gates, test limits and change controls are approved.
Send the PCB files, BOM, centroid, drawings, prototype quantity, sourcing model and test requirements.
