Robot PCB Manufacturer
LZJPCB manufactures and assembles custom robot PCBs for control, power, sensing, communication and interface functions. Engineering reviews the released electrical, mechanical, assembly and test data before production so purchasing and engineering teams receive one controlled PCB and PCBA package.
- PCB Manufacturing Since 2006
- 50+ Engineers
- 500+ Employees
- PCB + PCBA + BOM Supply
Robot PCB Manufacturing Capabilities
Use one production table to screen the robot PCB construction before commercial review. The accepted quotation then fixes the exact material, stackup, tolerances, finish, test route, quantity and schedule.
| Capability | Published production baseline | Robot PCB RFQ output |
|---|---|---|
| Layer count | Custom PCB builds from 1 to 40 layers | Accepted stackup and lamination route |
| Trace / space | 3 / 3 mil safe manufacturing baseline | CAM review against copper and geometry |
| Mechanical drill | 0.10 mm minimum manufacturing baseline | Finished-hole and annular-ring requirement |
| Board thickness | 0.20–17.50 mm published PCB range | Finished thickness and tolerance recorded |
| Copper | Accepted constructions up to 12 oz | Power-path copper plan locked |
| Controlled impedance | Target control to ±5% | Stackup and coupon scope when required |
| Surface finish | HASL, lead-free HASL, ENIG, immersion silver, immersion tin, hard gold, gold fingers and OSP | Exact finish fixed in the quotation |
| PCBA support | SMT, through-hole and mixed assembly | BOM, placement, inspection and assembly route |
| Production stage | Prototype, small batch and volume production | One released revision through scale-up |
Robot PCB Design & DFM Support
DFM reviews the released design for stackup, power and signal separation, connector and sensor clearance, motor-noise geometry, thermal paths, mechanical limits and assembly access. It does not imply full robot circuit or control-system design.
Engineering compares Gerber or ODB++, stackup, fabrication drawing, BOM and placement data with the customer’s enclosure, connector, sensor, actuator, motor-noise, thermal and test constraints. Every conflict returns as an itemized decision.
Robot PCB Applications
A robot normally contains several boards with different electrical and mechanical roles. These cards organize real manufacturing inputs without inventing an AGV, servo or motor-controller SEO category that is absent from the keyword plan.
Processor, memory, timing, power distribution and interfaces are reviewed against the supplied stackup, escape geometry and test access.
Current paths, copper, plated holes, connectors, switching areas and thermal interfaces are released as one construction.
Low-level signals, references, connector mapping, sensor clearance and contamination controls follow the approved package.
Impedance, connector launches, return paths and shielding interfaces are matched to the supplied communication design.
Driver current, switching regions, protection parts, terminal geometry and assembly access receive focused DFM.
Isolated inputs, relays, interlocks, field connectors and inspection points follow the customer’s released safety architecture.
Robot PCB Manufacturing & Assembly
Bare-board fabrication and robot PCB assembly share one released revision. The BOM, placement, connectors, large components, solder route, inspection and functional-test responsibility close before production.
SMT, through-hole and mixed assemblies receive a BOM and placement review. Connectors, relays, terminals, heat sinks, capacitors and mechanically loaded parts receive defined placement, soldering, support and inspection requirements.
PCB data, BOM, centroid and drawings align.
Fabrication, sourcing, SMT, THT and rework route.
Inspection and customer-defined function limits.
Custom & Volume Robotics PCB Assembly
Custom, mid-volume and high-volume builds use the same approved data and change control. Batch planning changes with volume; material, BOM, process, inspection and traceability remain linked to the released revision.
DFM closure, component verification and first-build inspection.
Stable work instructions, approved substitutions and lot control.
Panel, fixture, inspection and traceability plans for repeat builds.
Robot PCB Quality Control & Reliability Testing
Bare-board conformance, PCBA inspection and robot-level validation answer different risks. Each quoted test needs a named sample, method, fixture, limit, responsible party and record.
The production control plan links material, bare-board and assembly evidence to the shipped revision. Vibration, motor noise, power transients, thermal cycling, endurance and motion validation are included only when the customer supplies an approved procedure and limits.
Why Choose Us as Your Robot PCB Manufacturer
The page-specific supplier risk is losing the approved electronic-to-mechanical interface between PCB data, robot hardware and the first assembled build.

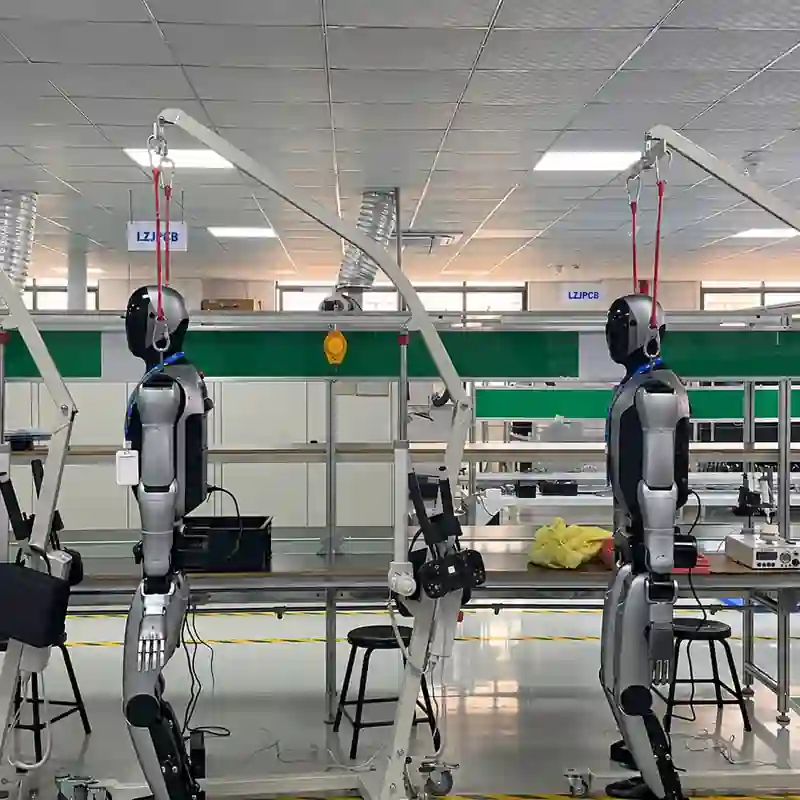

Instead of repeating generic capability or inspection claims, this evidence chain shows how outline, mounting, connectors, component height, sensor keep-outs and actuator interfaces remain consistent from DFM through first-build verification.
Robot PCB Case Studies
Publish only customer-approved, non-confidential facts. Each case needs the robot function, board constraints, assembly or test scope and measurable closure evidence.
Add the robot category, board function, construction, processor/interface density and verified production result.
Add the voltage/current range, copper construction, motor-noise controls, thermal path and accepted test evidence.
Add the interface, connector/sensor constraints, assembly route, functional test and closed DFM issue.
Get a Robot PCB Quote
Send the controlled board data and system constraints needed to release the PCB, PCBA, inspection and test scope.
Engineering will return the accepted construction, open questions, named exclusions, production route, price and quoted ship date.
- Gerber or ODB++, drill and fabrication drawing
- Stackup, material, copper and impedance
- BOM, centroid and assembly drawings
- Outline, mounting, enclosure and connector limits
- Power, signal, sensor and motor-noise constraints
- Prototype / production quantity and target schedule
- Inspection, function and reliability-test procedure
Frequently Asked Questions About Robot PCB
Define the role of PCBs in robot systems and the data needed for manufacturing, DFM and assembly review.
What Is a Robot PCB?
A robot PCB is a circuit board used for control, power distribution, sensing, communication, safety or interface functions in a robot system. A robot usually contains several boards with different current, signal, mechanical and test requirements. LZJPCB manufactures each custom PCB or PCBA from its released production package.
What role does a PCB play in a robot?
PCBs connect processors, power devices, sensors, encoders, communication interfaces, actuators, motors and safety I/O. The customer defines the architecture; the manufacturing package converts it into controlled materials, geometry, assembly and tests.
What files are required for robot PCB DFM?
Submit Gerber or ODB++, drill data, fabrication drawing, stackup, BOM, centroid and assembly drawings. Add outline, mounting, connector, enclosure, power, signal, thermal and test constraints so the review contains no assumed robot requirement.
What does LZJPCB check before robot PCB assembly?
The assembly review checks revision alignment, BOM identity, substitutions, footprints, polarity, component height and mass, connector access, solder process, inspection and rework access, and functional-test points.
Send the fabrication data, interfaces, assembly scope, quantity and validation procedure.
