RF & Microwave PCB Manufacturer
At RF and microwave frequencies, material data, stackup, copper geometry, return paths and launch transitions behave as one electromagnetic structure. LZJPCB reviews those manufacturing inputs together so the RF PCB you prototype can be released with controlled geometry and traceable production evidence.
- Low-loss material review
- Controlled-impedance DFM
- Critical-geometry release
- Prototype to production control
RF & Microwave PCB Manufacturing Capabilities
A general PCB minimum does not prove the same geometry on every RF laminate. Start with the published manufacturing baseline, then qualify the actual material, stackup, impedance, via structure and tolerance combination for the operating band.
| Qualification item | Published / current baseline | RF-specific release decision |
|---|---|---|
| Layer count | Overall custom PCB baseline: 1–40 layers | RF material, hybrid construction and lamination sequence confirmed per stackup |
| RF / low-loss material | 待补充 · supported code, thickness and copper list | Dk / Df data-sheet version, test method, frequency and lot control agreed |
| Trace / space | Overall published baseline: 3 / 3 mil | Critical RF geometry remains material / copper / process-specific |
| Mechanical drill / via | Overall published baseline: 0.10 mm mechanical drill | Launch, transition, back-drill / stub and annular requirements reviewed |
| Board thickness | Overall published PCB range: 0.20–17.50 mm | RF dielectric, tolerance, flatness and connector interface confirmed |
| Controlled impedance | Published target control to ±5% | Target, geometry, stackup, coupon / method and acceptance scope released |
| Surface finish | Project-specific options | Selected for RF contact, assembly, storage and geometry requirements |
| Prototype & production | Engineering sample through repeat production | Approved material, stackup, tooling and control plan remain revision-linked |
| Assembly / testing | Project-specific scope review | RF launch, connector, inspection and performance-test responsibilities defined |
Send frequency band, material / data sheet, stackup, target impedance, copper, critical dimensions, via / launch notes, finish, quantity and test scope. Overall factory minima are never substituted for RF-specific approval.
RF & Microwave PCB Materials & Low-Loss Laminates
A low Df headline is not enough if Dk method, frequency, thickness tolerance, copper profile, moisture and thermal expansion do not match the real structure. Select the laminate as part of the transmission line and manufacturing process.
Material selection connects electromagnetic loss, impedance stability, thermal processing, drilling, copper adhesion and assembly temperature. The approved RFQ should name the exact material or an agreed equivalent route—not a generic “low-loss” label.
Dk / Df, frequency, method, thickness and copper profile
Tg, decomposition, CTE and assembly exposure
Dimensional stability, drill behavior and flatness
Material code, data-sheet revision, source and lot evidence
RF & Microwave PCB Design & DFM Support
A target impedance cannot be separated from laminate data, dielectric thickness, copper, trace profile, reference plane and transition geometry. DFM turns those design inputs into one manufacturable, inspectable release without claiming ownership of your RF circuit architecture.
Material, pressed dielectric, copper and reference assignment set the impedance solution. Connector launches, layer changes and via fields then need matching dimensions and fabrication notes so the intended transition survives data preparation and production.
- Name material code, Dk basis, thickness and copper by layer.
- State single-ended / differential targets and applicable tolerance.
- Dimension critical traces, gaps, ground clearance and launch features.
- Identify via transition, stub / back-drill and reference requirements.
- Align finish, solder mask and connector interface assumptions.
RF PCB Layout & Routing Guidelines
Keep the return path continuous and the field environment predictable. Trace geometry, bends, coupling gaps, reference changes, via fences, sensitive-node isolation and connector launches should be intentional rather than repaired during fabrication.
Controlled width, gap, reference and mask condition
Continuous ground and short current-loop geometry
Launch, via, anti-pad, reference and stub treatment
Sensitive nodes, power, digital noise and board-edge control
This section provides manufacturing DFM guidance; full RF circuit / layout design service is not implied.
Review PCB Design SupportRF PCB Shielding & EMI Control
A shield can cannot fix a broken reference path, and a ground pour cannot replace a defined enclosure bond. Coordinate board-level grounding, via stitching, filter placement, keepouts and mechanical shielding interfaces before release.
Define what is being contained, where return current closes, how the shield contacts the PCB and enclosure, and which openings or transitions break that path. DFM then checks manufacturable pads, vias, mask clearances, edge features and assembly access.
Continuous ground, current loop and layer-transition path.
Pitch, placement, anti-pad and connection strategy from the design.
Pad, mask, solder / clip, rework and component-clearance needs.
Chassis bond, connector, seam and installation condition aligned.
Board-level DFM does not constitute system EMC design, chamber testing or certification.
Send shielding and enclosure notesRF & Microwave PCB Applications
Application names do not define the laminate or geometry. Use the operating band, loss budget, power, impedance, launch, environment and verification plan to determine whether the RF / microwave manufacturing route fits.
Resonant structures, coupling gaps, ground and finish require critical geometry to stay tied to the released material and process.
RFQ input: band, topology, material & critical gaps
Input / output isolation, bias routing, thermal path and launch transitions must remain consistent through fabrication and assembly.
RFQ input: power, band, impedance & heat path
RF, digital and power regions require planned references, isolation, material transitions and assembly interfaces.
RFQ input: mixed stackup, isolation & interface map
At shorter wavelengths, material data, tolerance, surface profile, launch and inspection scope must be proven for the actual project—frequency wording alone is not evidence.
Status: capability and case evidence 待补充
RF & Microwave PCB Prototyping
An RF prototype is useful only when its material, stackup, critical geometry and test setup can be traced and repeated. Freeze those inputs during first-article learning instead of treating the sample as a one-off exception.
Data-sheet basis, layer geometry and copper agreed
Fabricated from the proposed repeatable process route
Agreed impedance, dimensions and board evidence reviewed
Changes remain tied to material, tooling and acceptance plan
RF & Microwave PCB Quality Control & Testing
Electrical continuity, impedance and S-parameters answer different questions. Define which evidence the board supplier provides, which requires an assembled fixture, and which remains the customer’s system-level verification responsibility.
Code, source, data-sheet revision and applicable lot record verified.
Trace, gap, dielectric, registration and mechanical interface checked.
Target, coupon / structure, method and acceptance tied to the stackup.
Continuity and isolation verified against released net data.
S-parameter / loss / assembled test scope explicitly agreed or marked external.
Published controlled-impedance target is ±5%; applicable material, geometry, coupon, instrument and report scope require project confirmation.

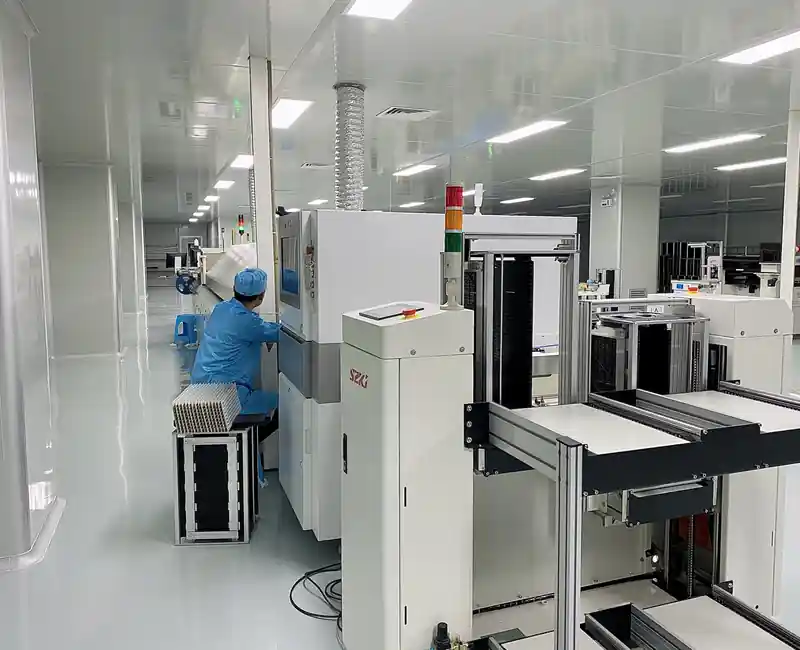

Review LZJPCB CertificationsWhy Choose Us as Your RF & Microwave PCB Manufacturer
An RF supplier earns confidence by controlling material identity, stackup, geometry, impedance evidence and change points—not by calling itself “best.” Our page keeps published baselines separate from the project-specific RF structure that engineering must approve.
Approved code, data basis, thickness, copper and sourcing evidence.
Critical traces, launches, vias, references and dimensions tied to revision.
Electrical, dimensional, impedance and agreed RF test responsibilities closed.
RF & Microwave PCB Case Studies
A useful RF case identifies frequency band, material / stackup, impedance, critical geometry, finish, test method and result. Until customer-authorized evidence is available, the 24 GHz and 5G slots remain explicit placeholders.
待补充：application、band、material / stackup、impedance、critical geometry、launch / via、finish、quantity、test method and measurable result。
待补充
待补充
待补充
待补充：application、band、hybrid / low-loss stackup、geometry tolerance、finish、quantity、assembly interface、test evidence and result。
待补充
待补充
待补充
Get an RF & Microwave PCB Quote
An RF quote is only comparable when frequency, material, stackup, impedance, critical dimensions and test responsibility describe the same board. Answer the four questions below so engineering can review the actual structure before price and schedule are fixed.
Frequently Asked Questions About RF & Microwave PCB
RF, microwave and high-frequency terms overlap, but procurement still needs a precise material, stackup, geometry and evidence scope. Open the relevant question to define the actual board.
