6 Layer PCB Manufacturer
Adding two layers does not solve a design if signal references, power regions, BGA escape and via transitions are still planned separately. LZJPCB reviews the complete six-layer stackup before release, so fabrication follows one approved construction from prototype to repeat production.
- PCB manufacturing since 2006
- 50+ engineering team
- 4 production bases
- 100% electrical test
6-Layer PCB Manufacturing Capabilities
A six-layer design can exceed one manufacturing limit while every individual specification still looks acceptable. We review material, dielectric build, copper, holes and impedance as one construction, then release the combination that can be fabricated and repeated.
| Manufacturing item | Published LZJPCB range | Six-layer RFQ decision |
|---|---|---|
| Layer construction | Six conductive copper layers | Released signal / plane allocation, copper distribution and dielectric build |
| Factory layer capability | 1–40 layers for prototype / special capability; 1–32 for volume production | Six-layer route confirmed against actual construction and order stage |
| Material systems | Standard FR4, High-Tg, halogen-free, RCC and mixed-material stackups | Named laminate route and applicable material records |
| Finished thickness | 0.20–17.50 mm factory range | Nominal thickness and accepted tolerance |
| Maximum board size | 650 × 2,000 mm | Panel utilization, routing and dimensional review |
| Minimum trace / space | 3 / 3 mil | Geometry check against copper weight and yield requirements |
| Minimum mechanical drill | 0.10 mm | Finished-hole, aspect-ratio and annular-ring review |
| Copper thickness | Up to 12 oz factory range | Base and finished copper defined per layer |
| Controlled impedance | ±5% published tolerance | Target, reference plane, geometry and coupon requirement |
| Via structures | Plated through, blind, buried, microvia and back drill | Selected by design review; not every structure is needed on a six-layer board |
| Surface finishes | HASL, LF HASL, ENIG, Ag, Sn, hard gold, OSP and gold fingers | Finish matched to assembly, contact and storage requirements |
| Production stage | Prototype, small batch and volume | One controlled revision from validation to repeat production |
Engineering checks Gerber / ODB++, stackup, layer function, drill, dimensions, copper, tolerance, impedance and special processes before manufacturing data is released.
6-Layer PCB Stackup & Design Guidelines
Copying a “standard” six-layer stackup before assigning signal, ground and power functions can create broken references or an unbuildable impedance geometry. Start with the electrical role of each layer, then release the material, dielectric and copper construction that preserves those decisions in fabrication.
Answer first
A useful six-layer stackup begins with references, not a copied layer list.
Six layers create more routing and plane options than a four-layer board, but every signal layer still needs a deliberate adjacent reference. Ground placement, power distribution, BGA escape and impedance geometry must be solved together before the laminate build is approved.
- Assign signal, ground and power functions before detailed routing.
- Keep critical outer and inner signal layers adjacent to continuous references.
- Place power regions without cutting high-speed return-current paths.
- Calculate impedance from the released laminate Dk, dielectric thickness, copper and geometry.
- Release one approved stackup with the fabrication data and revision.
6-Layer PCB Thickness
Choosing a finished thickness without checking the six-layer dielectric build can leave too little spacing for impedance or too much aspect ratio for the selected holes. Set the project nominal thickness first, then release core, prepreg, copper and tolerance as one controlled construction.
待补充 · LZJPCB common six-layer builds| Thickness item | Draft state | Release requirement |
|---|---|---|
| L1 / L6 outer copper | 待补充 | Base and finished copper |
| L2–L5 inner copper | 待补充 | Signal / plane use and copper balance |
| Core and prepreg | 待补充 | Material family, Dk and pressed thickness |
| Finished board thickness | Project nominal | Accepted tolerance and enclosure requirement |
| Hole structure | Project-specific | Finished hole, drill, plating and aspect-ratio review |
| Impedance geometry | Project-specific | Target, trace width / spacing and reference layer |
6-Layer PCB Design Guidelines
A routed six-layer board can still fail DFM when layer roles, plane gaps, via transitions or BGA escape are resolved too late. Close these six decisions before release so the factory receives one coherent design package.
Define which layers carry signals, ground and power before routing begins.
Keep critical routes over continuous planes and avoid crossing plane gaps.
Place return vias deliberately and review drill, annular ring and aspect ratio.
Match pitch, fan-out, trace / space and via type to the accepted process.
Release target, reference layer, laminate, copper and geometry together.
Align Gerber / ODB++, drill, drawing, stackup and revision before fabrication.
6-Layer PCB Applications
Four layers can become restrictive when BGA escape, multiple interfaces and separate power regions compete for the same routing space. Six layers are a better fit when the added signal and reference allocation removes those compromises without moving to a higher layer count than the design needs.
Industrial & Motion Controllers
Additional routing and reference allocation can separate processor, feedback, communication and power-control regions while preserving continuous return paths.
Best fit: dense control + multiple interfaces
Network & Communication Controllers
Dedicated references and extra routing channels support Ethernet, USB, LVDS and similar interfaces when length, geometry and layer transitions are controlled.
Best fit: several controlled interfaces
Multi-Rail Power & Interface Boards
Six layers provide more freedom to distribute power regions and route low-level control, provided current capacity, thermal paths and reference continuity are reviewed together.
Best fit: multiple rails + mixed-signal control
Compact BGA-Based Systems
The extra inner-layer allocation may close fan-out and reference needs when pitch, via type, trace / space and plane usage remain inside the accepted manufacturing window.
Best fit: DFM-confirmed BGA escape
6-Layer PCB Quality Control
Four inner copper layers increase the number of features that disappear after lamination. We inspect inner layers and registration before bonding, then control drilling, plating, impedance when specified and electrical test so hidden construction risks are checked before shipment.
Check Gerber / ODB++, drill, stackup, laminate, copper and controlled requirements against one revision.
Inspect inner copper for opens, shorts and feature defects before the layers are bonded.
Control press conditions, alignment, drilling, desmear, plating and finished-hole requirements.
Use the released geometry and applicable coupon / measurement requirement instead of assuming a generic trace width.
Verify continuity and isolation, then close dimensional, finish, marking and shipment checks.
Why Choose Us as Your 6-Layer PCB Manufacturer
Changing material or stackup between prototype and volume can invalidate the work you already approved. LZJPCB keeps the released construction and inspection route tied to the part revision, so repeat orders follow the same manufacturing baseline.
The laminate, layer order, copper, drill, impedance geometry and inspection scope stay tied to the released part revision.
DFM closes missing or conflicting construction requirements before the files enter production.

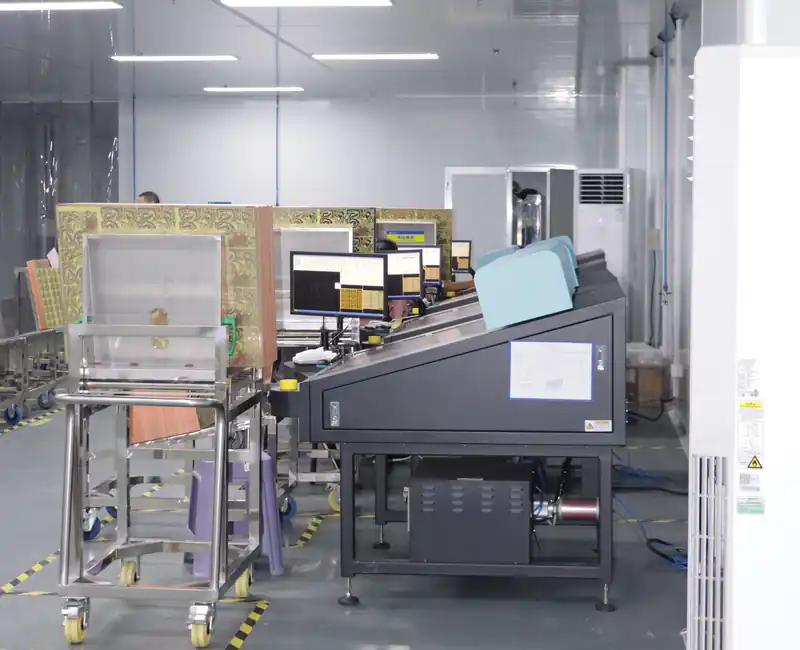

Inner-layer AOI, lamination and plated-hole controls, electrical test and final inspection support repeat production.
6-Layer PCB Case Studies
A generic PCB photo does not prove that a supplier solved a comparable build. Each published case will show the starting constraint, approved construction and verification result, so you can judge its relevance to your own project.
6-Layer PCB Case 01
待补充：industry, project constraint, approved stackup, laminate, finished thickness, copper, impedance / plane requirement and production quantity.
6-Layer PCB Case 02
待补充：industry, routing or BGA challenge, approved construction, DFM decision, inspection records, quantity and measurable project result.
Get a 6-Layer PCB Quote
Two six-layer PCBs can have different prices when material, thickness, copper, via structure, impedance or quantity changes. Answer the four questions below so engineering can review the build and quote the same prototype or production board you intend to approve.
Frequently Asked Questions About 6-Layer PCB
Layer count should solve a design constraint, not create extra cost. Open the relevant question below to compare routing, reference planes and manufacturing tradeoffs before requesting the final stackup review.
4-Layer vs 6-Layer PCB
If a four-layer board forces BGA escape, interface routing and power regions to compete for the same space, six layers may remove that risk. Stay with four when two outer routing layers and two inner references already solve the design; move to six when the extra allocation produces a cleaner, reviewable stackup.
- Decision
- 4-Layer PCB
- 6-Layer PCB
- Layer allocation
- Usually tighter signal / plane choices
- More signal and reference combinations
- Routing density
- Moderate to high
- Higher density and escape flexibility
- EMI / return paths
- Strongly dependent on one compact stackup
- More options for adjacent continuous references
- Manufacturing cost
- Lower layer-build cost
- Higher build cost; justified by solved constraints
6-Layer vs 8-Layer PCB
If six layers still require shared power regions, congested BGA escape or reference compromises, eight layers provide another pair of allocation options. Keep six when its routing and plane plan already closes the design; adding layers without a specific constraint only adds fabrication cost and stackup complexity.
- Decision
- 6-Layer PCB
- 8-Layer PCB
- Layer allocation
- Balanced for many dense designs
- More dedicated signal / plane choices
- Routing capacity
- High
- Higher for dense escape and interfaces
- Power / reference control
- Must be prioritized carefully
- More separation and adjacency options
- Cost
- Lower layer-build cost
- Higher material and processing cost
