4 Layer PCB Manufacturer
A four-layer design can still suffer respins when material, return paths, copper and impedance are decided separately. LZJPCB reviews the complete build before release, so prototype and repeat production follow one approved, manufacturable construction.
- PCB manufacturing since 2006
- 50+ engineering team
- 4 production bases
- 100% electrical test
4 Layer PCB Manufacturing Capabilities
A capability number alone cannot show whether material, copper, drill and impedance will work together. We screen them as one build, then release the exact construction you can approve, quote and repeat.
| Manufacturing item | Published LZJPCB range | Four-layer RFQ decision |
|---|---|---|
| Layer construction | Four conductive copper layers | Released layer order, copper distribution and dielectric build |
| Material systems | Standard FR4, High-Tg, halogen-free, RCC and mixed-material stackups | Named laminate route and applicable material records |
| Finished thickness | 0.20–17.50 mm factory range | Nominal thickness and accepted tolerance |
| Maximum board size | 650 × 2,000 mm | Panel utilization, routing and dimensional review |
| Minimum trace / space | 3 / 3 mil | Geometry check against copper weight and yield requirements |
| Minimum mechanical drill | 0.10 mm | Finished-hole, aspect-ratio and annular-ring review |
| Copper thickness | Up to 12 oz factory range | Base and finished copper defined per layer |
| Controlled impedance | ±5% published tolerance | Target, reference plane, geometry and coupon requirement |
| Via structures | Plated through, blind, buried, microvia and back drill | Selected by design review; not every structure is needed on a four-layer board |
| Surface finishes | HASL, LF HASL, ENIG, Ag, Sn, hard gold, OSP and gold fingers | Finish matched to assembly, contact and storage requirements |
| Production stage | Prototype, small batch and volume | One controlled revision from validation to repeat production |
Engineering checks the Gerber data, stackup, drill, dimensions, copper, tolerance, impedance and special processes before manufacturing data is released.
4-Layer PCB Stackup
Choosing layer order before the return path and material build can change impedance after routing is finished. Start with a four-layer logic, then confirm dielectric spacing, copper and plane use so the manufactured board preserves the intended electrical behavior.
Answer first
There is no universal “best” four-layer stackup.
SIG / GND / PWR / SIG is a familiar arrangement because it provides two routing layers and internal reference planes. A design that routes fast signals on both outer layers may instead benefit from two continuous ground references, with power distributed elsewhere. The final choice must preserve return paths and remain manufacturable.
- Place a continuous reference plane next to critical signal routing.
- Do not route fast signals across plane splits or reference discontinuities.
- Define base and finished copper separately for the outer and inner layers.
- Calculate impedance from the actual laminate Dk, dielectric thickness, copper and trace geometry.
- Release the approved stackup with the fabrication data and revision.
4-Layer PCB Thickness & 1.6 mm Stackup
Assuming that every 1.6 mm board uses the same laminate recipe can shift impedance or finished thickness. Treat 1.6 mm as the nominal target, then release the actual core, prepreg, copper and tolerance as one controlled build.
待补充 · LZJPCB standard 1.6 mm build| Stackup item | Draft state | Release requirement |
|---|---|---|
| L1 / L4 outer copper | 待补充 | Base and finished copper |
| Prepreg above / below core | 待补充 | Material family, Dk and pressed thickness |
| L2 / L3 inner copper | 待补充 | Plane copper and copper balance |
| Core | 待补充 | Material code and core thickness |
| Finished board thickness | 1.60 mm nominal | Accepted project tolerance |
| Impedance geometry | Project-specific | Target, trace width / spacing and reference plane |
Ground, Power & Impedance in a 4-Layer Stackup
A controlled-impedance trace needs a continuous adjacent reference and a geometry calculated from the released material system. Changing prepreg, copper, trace width or solder mask can change the result even when the nominal board thickness remains 1.6 mm.
Keep the reference plane continuous under the signal and place return vias near signal-layer transitions.
Use a plane or wide copper only where it preserves reference continuity and current capacity.
Treat 50 Ω as an electrical target, not a universal trace width.
Confirm laminate Dk, dielectric thickness, copper and coupon requirements before routing is frozen.
4-Layer PCB Design & DFM Guidelines
A routed four-layer board can still stall at fabrication when planes, vias or stackup notes conflict. Review these six DFM decisions before release so the factory receives one clear build package instead of making assumptions.
Define signal, ground and power use before detailed routing begins.
Keep critical traces above continuous planes and avoid plane gaps.
Check drill, annular ring, aspect ratio and return-via placement.
Do not let split rails interrupt high-speed return-current paths.
Match pitch, fan-out, trace / space and via strategy to fabrication limits.
Align Gerber / ODB++, drill, stackup, drawing, impedance and revision.
4-Layer PCB Applications
Two layers can force routing compromises, while six layers may add cost the design does not need. Four layers fit the middle ground: more routing room and internal references without unnecessary layer allocation.
Controllers & Interface Boards
Internal ground and power distribution support MCU, interface, sensor and communication circuits while the outer layers retain component and routing access.
Best fit: moderate density + mixed interfaces
Connected Devices & Gateways
A reviewed stackup can provide controlled references for Ethernet, USB, LVDS and other interfaces when routing length, geometry and transitions are managed.
Best fit: defined interfaces + impedance review
Power Supply Control Boards
Four layers can separate low-level control from current-carrying copper when creepage, thermal paths, copper weight and plane continuity are reviewed together.
Best fit: control + power distribution
Compact Embedded Systems
A four-layer route may support BGA devices when pitch, fan-out, via type, routing channels and plane allocation remain inside the accepted manufacturing window.
Best fit: DFM-confirmed BGA escape
4-Layer PCB Quality Control
Inner-layer defects and weak plated holes are invisible in a finished-board photo. We inspect before lamination and follow the released build through electrical test and final inspection, so hidden construction risks are checked before shipment.
Check Gerber / ODB++, drill, stackup, laminate, copper and controlled requirements against one revision.
Inspect inner copper for opens, shorts and feature defects before the layers are bonded.
Control press conditions, alignment, drilling, desmear, plating and finished-hole requirements.
Use the released geometry and applicable coupon / measurement requirement instead of assuming a generic trace width.
Verify continuity and isolation, then close dimensional, finish, marking and shipment checks.
4-Layer PCB Cost & Pricing
A low headline price can change as soon as material, copper or drill density is reviewed. Give all eight cost drivers up front so every quote reflects the same construction and you can compare suppliers on a usable basis.
Answer first
Price the released construction, not the layer count alone.
Two four-layer boards can have very different costs when size, material, copper, drill density, impedance and order quantity change. Include all eight inputs so the quotation reflects the same build you intend to approve.
Panel utilization and route length
Laminate family and availability
Nominal build and tolerance
Base and finished copper per layer
Trace / space, drills and via count
Calculation, coupon and tolerance
Assembly and contact requirement
Prototype setup and repeat volume

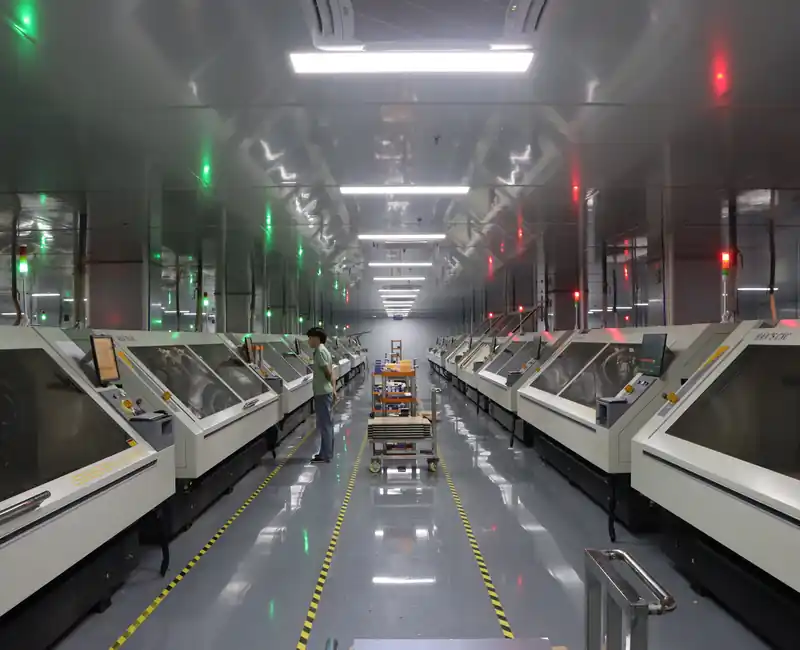

Why Choose Us as Your 4-Layer PCB Manufacturer
Changing material or stackup between prototype and volume can invalidate the work you already approved. LZJPCB keeps the released construction and inspection route tied to the part revision, so repeat orders follow the same manufacturing baseline.
The laminate, layer order, copper, drill, impedance geometry and inspection scope stay tied to the released part revision.
DFM closes missing or conflicting construction requirements before the files enter production.
Inner-layer AOI, lamination and plated-hole controls, electrical test and final inspection support repeat production.
4-Layer PCB Case Studies
A generic PCB photo does not prove that a supplier solved a comparable build. Each published case will show the starting constraint, approved construction and verification result, so you can judge its relevance to your own project.
4-Layer PCB Case 01
待补充：industry, project constraint, approved stackup, laminate, finished thickness, copper, impedance / plane requirement and production quantity.
4-Layer PCB Case 02
待补充：industry, routing or BGA challenge, approved construction, DFM decision, inspection records, quantity and measurable project result.
Get a 4-Layer PCB Quote
Missing build inputs create assumptions and rework. Answer the four questions below so engineering can review the construction and quote the same board you intend to approve.
Frequently Asked Questions About 4-Layer PCB
Layer count should solve a design constraint, not create extra cost. Open the relevant question below to compare routing, reference planes and manufacturing tradeoffs before requesting the final stackup review.
2-Layer vs 4-Layer PCB
If a two-layer board is running out of routing room or forcing broken return paths, four layers may remove that risk. Compare the design need first, then choose the lowest layer count that preserves routing and reference continuity.
- Decision
- 2-Layer PCB
- 4-Layer PCB
- Routing density
- Low to moderate
- Moderate to high
- Internal planes
- None
- Two inner layers available
- EMI / return paths
- Depends on surface layout
- Continuous internal references possible
- Manufacturing cost
- Lower construction cost
- Higher, with added routing and plane control
4-Layer vs 6-Layer PCB
If four layers cannot close BGA escape, high-speed references or multiple power regions without compromises, six layers provide more allocation freedom. Stay with four when its two outer routing layers and two internal references already solve the design.
- Decision
- 4-Layer PCB
- 6-Layer PCB
- Layer allocation
- Limited but efficient
- More signal / plane combinations
- Routing capacity
- Moderate to high
- Higher density and escape options
- Reference control
- Depends strongly on chosen stackup
- More flexibility for adjacent ground references
- Cost
- Lower layer-build cost
- Higher layer-build and lamination cost
