High-Frequency PCB Manufacturer
LZJPCB manufactures custom high-frequency circuit boards with Rogers and PTFE material systems, multilayer and hybrid constructions, controlled impedance and low-loss DFM support. Prototype, production and assembly orders are released against one approved stackup, material set and test plan.
- Since 2006
- 50+ Engineers
- ±5% Impedance
- Rogers & PTFE
High-Frequency PCB Manufacturing Capabilities
Screen the published factory limits first. The quotation then locks the high-frequency laminate, Dk/Df reference, stackup, impedance geometry, via structure and required test evidence for the exact part number.
| Qualification item | Controlled manufacturing scope | Release evidence |
|---|---|---|
| Laminate system | Rogers, PTFE and compatible FR-4 / high-Tg material systems | The offer names the exact laminate code, core/prepreg build and source specification. |
| Dk / Df reference | Datasheet value and customer-design value kept distinct | The stackup states which value and test reference drive impedance calculation. |
| Layer count | 1–40 layer custom PCB capability | The released drawing identifies every signal, reference, power and dielectric layer. |
| Controlled impedance | ±5% published capability | Approved geometry, coupon requirement and report scope are fixed before build. |
| Trace / space | 3 / 3 mil safe minimum | Copper weight, etch compensation and finished geometry are reviewed together. |
| Via and drill | 0.10 mm minimum mechanical drill | Finished hole, pad, antipad, stub control and registration appear in the released data. |
| Board thickness | 0.20–17.5 mm published PCB range | Each dielectric and copper contribution remains visible in the approved stackup. |
| Registration | Project-specific finished geometry | Layer-to-layer, drill and copper registration checkpoints follow the critical RF features. |
| Copper | Up to 12 oz published PCB capability | Base and finished copper are stated independently for controlled geometry. |
| Inspection | AOI, X-ray and 100% electrical test | The order control plan identifies standard inspection and added project tests. |
High-Frequency PCB Types & Structures
Choose the structure from the electrical stackup and performance target. Multilayer high-frequency boards organize controlled reference planes, while RF and microwave boards prioritize low-loss paths, launches and repeatable finished geometry.
Multilayer High-Frequency PCB
A multilayer high-frequency PCB combines signal, reference and power layers in one controlled stack. Engineering locks laminate type, dielectric thickness, copper, trace geometry, reference planes, via transitions and impedance coupons before fabrication.
Explore Multilayer PCBRF & Microwave High-Frequency PCB
RF and microwave boards prioritize stable Dk/Df, short return paths, controlled launches, low-loss transmission lines and repeatable finished geometry. The released package ties the laminate and copper profile to the customer’s frequency, impedance and RF test requirements.
Review RF Material OptionsHigh-Frequency PCB Materials & Laminates
Dk, Df, copper roughness, dielectric thickness, thermal behavior and fabrication compatibility determine the material system. LZJPCB releases each order by exact laminate code and approved stackup—never by a generic “high-frequency material” description.
High-Frequency PCB Laminate Brands & Material Options
LZJPCB’s published material range includes Rogers and PTFE high-frequency systems plus FR-4 and high-Tg laminates. The purchase package records the exact manufacturer, series, thickness and copper construction.
Hybrid, High-Tg & Low-Dk Material Options
A hybrid stack places low-loss laminate only where RF performance needs it and uses a compatible material elsewhere. High-Tg and low-Dk choices are released against specific thermal, signal and lamination requirements.
- Hybrid stack: map each core and prepreg by exact material code; verify bond compatibility and z-axis behavior.
- High-Tg option: use the selected datasheet to control thermal excursion and dimensional behavior.
- Low-Dk option: state the design Dk, reference frequency and impedance model used by the layout.
- Copper profile: record foil type and roughness requirement because conductor loss changes at high frequency.
High-Frequency PCB Lamination
High-frequency PCB lamination controls final dielectric thickness, resin movement, copper-to-copper registration and surface condition. The traveler follows the released laminate system instead of applying one generic FR-4 press cycle.
- Incoming laminate identity and lot records match the released material set.
- Layer preparation follows the selected laminate and bonding system.
- Press parameters use the approved material processing window.
- Post-lamination thickness and registration checks protect impedance geometry.
- Coupons and finished boards follow the order’s inspection and test plan.
High-Frequency PCB Design & DFM Guidelines
LZJPCB provides stackup and manufacturability DFM. The customer remains the electrical design authority; our review converts the approved circuit and layout into a controlled, buildable fabrication package.
What the DFM review returns
A useful review identifies the accepted material, finished stackup, controlled-impedance geometry, via constraints, copper compensation, registration limits, surface finish and coupon/test scope.
High-Frequency PCB Layout & Design Rules
Use these rules before quotation to reduce rework and protect the RF return path.
Low-Loss High-Frequency PCB Design
Low-loss performance comes from a controlled system. Material Df alone cannot compensate for rough copper, long routes, discontinuous returns or poor launches.
Specify laminate Dk/Df reference, dielectric thickness and copper profile.
Approve finished width, spacing, copper thickness and reference plane.
Control vias, launches, pads and surface finish in the RF path.
Name frequency range, fixture, coupon and S-parameter report requirement in the RFQ.
High-Frequency PCB Applications
Each application below links the circuit environment to the material, geometry, inspection and evidence that purchasing must put into the fabrication package.
High-Frequency PCB for Aerospace & Defense
Radar, navigation, communication and sensing boards need controlled material identity, repeatable stackup, impedance evidence and documented inspection. The project drawing defines the environmental and reliability test standard.
High-Frequency PCB for Telecom & High-Speed Communications
Telecom and 10G+ hardware uses controlled differential or single-ended structures, stable reference planes and repeatable connector launches. Stackup and loss targets are tied to the actual interface and channel model.
High-Frequency PCB for RF, Microwave & 5G Circuits
RF front ends, filters, amplifiers, antennas and microwave circuits require the agreed design Dk/Df, transmission-line geometry, grounding, via transitions and RF measurement definition.
High-Frequency PCB for Automotive Radar
Automotive radar boards need stable high-frequency laminate, controlled copper geometry, tight registration and traceable production controls. IATF 16949 supports supplier qualification; the customer drawing defines the radar-specific validation plan.
High-Frequency PCB Performance Testing & Reliability
The test plan separates manufacturing integrity, impedance verification and RF electrical characterization. Each report must identify its specimen, method, frequency range, fixture and acceptance limit.
High-Frequency PCB Performance Testing
Standard PCB quality controls and RF performance measurements answer different questions. The quotation states which records ship with the order.
High-Frequency PCB Reliability & Thermal Stability
Repeatable high-frequency performance starts with stable inputs and controlled finished geometry across lots.
High-Frequency PCB Prototype & Quick Turn
Prototype the exact material family, stackup, copper, finish and controlled geometry planned for production. The quotation provides a fixed calendar ship date after the build package and material route are approved.
Four release gates for a quick-turn build
The fastest route removes material, stackup and measurement ambiguity before tooling starts.
Gerber or ODB++, drill, outline, stackup, laminate code, Dk/Df reference, impedance and quantity.
Material, geometry, via transitions, registration, finish, coupons and panel route reviewed.
The offer names the accepted construction, material route, tests, price and calendar ship date.
Fabrication, AOI, dimensions, X-ray where required, electrical test and specified performance evidence completed.

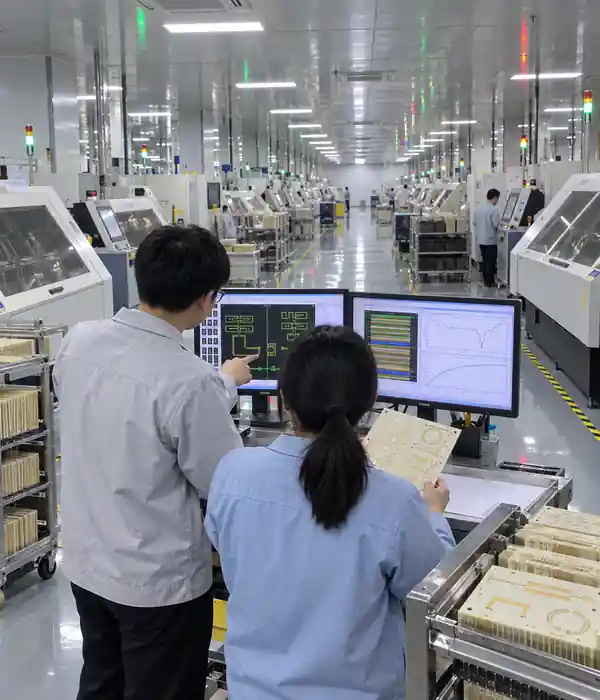

Why Choose Us for High-Frequency PCB
One controlled RF build package keeps the chosen laminate, impedance model and finished signal geometry aligned from feasibility review through production evidence.
Controlled RF Stackup Release from Material Code to Performance Evidence
The differentiator is not a material logo. It is one released definition that carries the same Dk/Df reference, copper profile, dielectric thickness, impedance geometry and test scope into the finished order.
The offer names the laminate code, design Dk/Df reference, dielectric construction and copper profile before PO.
Engineering aligns the stackup, line geometry, reference planes, vias, launches, impedance coupons and Gerber revision.
The approved prototype baseline follows the lot through material records, finished geometry, impedance evidence and specified RF reports.
High-Frequency PCB Case Studies
A credible high-frequency case study states the application, frequency range, laminate, design Dk/Df, layer stack, controlled impedance, finish, test method and measured result. These modules are reserved for customer-approved project records.
Publish an approved RF project with a traceable laminate, controlled launch and defined S-parameter evidence.
Publish only after the customer authorizes the project data.
Publish an approved hybrid build with named RF and FR-4 materials, lamination controls and registration evidence.
Publish only after the customer authorizes the project data.
Publish an approved radar project with IATF control records, lot traceability and project-defined validation evidence.
Publish only after the customer authorizes the project data.
High-Frequency PCB Assembly
LZJPCB supports fabrication-to-assembly handoff for RF components, BGAs and board connectors. The assembly package preserves the approved bare-board revision, component orientation, solder process, cleanliness and inspection requirements.
Build one controlled assembly package
Send the bare-board data and assembly data under matching revision control. RF connectors, shielding, grounding points and sensitive component locations remain explicit.
- RF components and matched networks follow the approved BOM and placement data.
- BGA and hidden solder joints use X-ray inspection where the control plan requires it.
- Connector position, shield contact and ground interface follow the mechanical drawing.
- Cleaning and handling requirements are locked before the assembly lot is released.
- Functional or RF test requirements include fixture, limits, coverage and report format.
Get a High-Frequency PCB Quote
Send one complete data package. The returned quotation states the accepted material and stackup, controlled geometry, inspection, test scope, quantity price and fixed calendar ship date.
Inputs that set the manufacturing scope
These inputs replace open assumptions with one costed, buildable high-frequency PCB specification.
- Gerber / ODB++ and NC drill files
- Application and operating frequency range
- Stackup, laminate code and Dk/Df reference
- Controlled-impedance table and tolerance
- Layer count, board thickness and copper weight
- Via structure, finished hole and registration requirements
- Surface finish, solder mask and marking
- Prototype and annual production quantities
- Electrical, impedance and RF performance test requirements
- Assembly BOM, CPL and test package when assembly is included
Accepted laminate and stackup, tooling, inspection, test evidence, quantity price breaks and one fixed calendar ship date.
Frequently Asked Questions About High-Frequency PCB
Short answers for material and product selection without repeating the engineering sections above.
What Makes a PCB a High-Frequency PCB?
A PCB becomes a high-frequency PCB when signal behavior is strongly affected by laminate Dk/Df, conductor loss, dielectric thickness, trace geometry, reference planes, vias and launches. The design therefore needs an explicit material system, controlled stackup and transmission-line geometry instead of only a generic board thickness and copper weight.
Which Materials Are Used for High-Frequency PCBs?
Common material families include low-loss Rogers and PTFE systems, compatible high-frequency laminates, and FR-4 or high-Tg materials for approved hybrid or lower-loss-demand sections. Selection uses the design Dk, Df, frequency, copper profile, thermal behavior and lamination compatibility. See the materials and laminates section.
Is a High-Frequency PCB the Same as an RF or Microwave PCB?
High-frequency PCB is the broader manufacturing category for circuits whose electrical behavior needs controlled materials and geometry. RF and microwave PCBs are important subsets used for radio-frequency and microwave circuits. Every RF or microwave build on this page is treated as high-frequency, while the exact operating range and performance targets still come from the project specification.
Send the Gerber, stackup, laminate code, frequency range, impedance, copper, thickness, quantity and test requirements.
