Copper Core PCB Manufacturer
A copper base can spread heat efficiently, but it cannot rescue an undefined dielectric, mounting interface or copper pattern. LZJPCB reviews the complete 1–2 layer copper core PCB construction so thermal, isolation and manufacturing decisions close before release.
- 1–2 layer copper core PCB
- Thermal-path engineering review
- Prototype to repeat production
- 100% electrical test
Copper Core PCB Manufacturing Capabilities
A broad “copper PCB” claim does not define a manufacturable copper-core board. Start with the real layer structure, core, dielectric and interface; engineering can then confirm what is supported and release one repeatable construction.
| Manufacturing item | Current page scope | Release decision |
|---|---|---|
| Layer structure | 1–2 layer copper core PCB | Cross-section and electrical interconnection confirmed from the actual design |
| Copper core / base | 待补充 · supported grade and thickness range | Heat spreading, mechanics, machining and sourcing reviewed together |
| Thermal dielectric | 待补充 · family, thickness and thermal data | Electrical isolation and through-thickness heat path verified as one system |
| Finished board thickness | 待补充 · Copper Core PCB-specific range and tolerance | Board, enclosure, fastener and interface requirements aligned before release |
| Circuit copper | 待补充 · base and finished copper range | Current, etching, spacing and heat-spreading needs checked against geometry |
| Trace / space, holes & size | 待补充 · structure-specific limits | Design checked against copper, dielectric, drill, edge and routing conditions |
| Surface finish | Project-specific options | Finish selected for assembly, contact, storage and service environment |
| Prototype & production | Engineering samples through repeat orders | Approved material, stackup and inspection plan stay tied to the revision |
Send Gerber / ODB++, layer drawing, copper-core requirement, dielectric data, copper, holes, outline, finish, assembly interface and thermal target. Missing project-specific limits remain marked 待补充 until evidence is approved.
Copper Core PCB Thermal Performance & Construction
The metal base is only one part of the heat path. Resolve the circuit copper, electrically isolating dielectric, copper core and mechanical interface together so the board performs after assembly—not only on a material data sheet.
Heat leaves a component through its pad and copper pattern, crosses an electrically isolating dielectric, spreads into the copper base, then reaches a housing or heat sink. A high-conductivity core cannot compensate for a poorly defined dielectric or incomplete mechanical contact.
- Match the dielectric to isolation, thickness and thermal requirements.
- Keep heat-source pads and spreading copper tied to the actual load.
- Define the interface material, pressure, flatness and contact area.
- Release the cross-section with the approved material revision.
A headline material value ignores dielectric thickness, heat-source area, copper geometry, board outline, mounting pressure and enclosure temperature. Compare complete constructions against the same thermal boundary conditions before choosing copper core.
Power loss, footprint and allowable junction / case rise
Pad, copper spreading, dielectric and core geometry
Flatness, contact area, TIM, fastener and pressure
Project-specific model, coupon or assembled test condition
Copper Core PCB Design & DFM Support
Thermal intent can be lost when the PCB drawing, mechanical model and BOM describe different interfaces. Our DFM review identifies those gaps before tooling while ownership of the electrical and layout design stays with your team.
Gerber / ODB++, netlist, drawing and revision agree.
Material identity, thickness, isolation and thermal target are explicit.
Finished copper, spacing, current and heat spreading are compatible.
Drill, plating, clearance, routing and metal exposure are controlled.
Component, solder, flatness, TIM and fastener requirements align.
Electrical, dimensional, material and project thermal evidence are named.
Copper Core PCB Applications
Copper core is useful when a compact board must move concentrated heat into a controlled mechanical path. The right application is defined by heat flux, electrical isolation, mass, packaging and cost—not by industry name alone.
Review concentrated device loss, switching layout, isolation and the chassis route before choosing a copper-base construction.
Fit signal: high heat flux + constrained footprint
Use copper core when the verified LED heat load and mechanical envelope justify a different balance from a conventional aluminum-base board.
Fit signal: localized source + defined luminaire interface
Motor drive, charging and control assemblies require the board, enclosure, isolation and field temperature to be assessed as one thermal system.
Fit signal: repeat load + controlled enclosure path
The circuit board may become part of the heat spreader when pad geometry, isolation, attachment and flatness are explicitly controlled.
Fit signal: device-to-base thermal path is measurable
Copper Core PCB Quality Control
Electrical continuity alone does not verify the dielectric, core, thickness or interface behind a thermal design. Tie incoming material, in-process construction and final inspection to the same released revision.
Core and dielectric records matched to the purchase and revision.
AOI / visual criteria applied before downstream processing where applicable.
Layer, hole, insulation, thickness and outline checked to project criteria.
100% continuity and isolation test for the released net data.
Finish, marking, documentation, packing and any agreed thermal evidence closed.
System certificates describe company controls; product / material compliance remains project-specific.

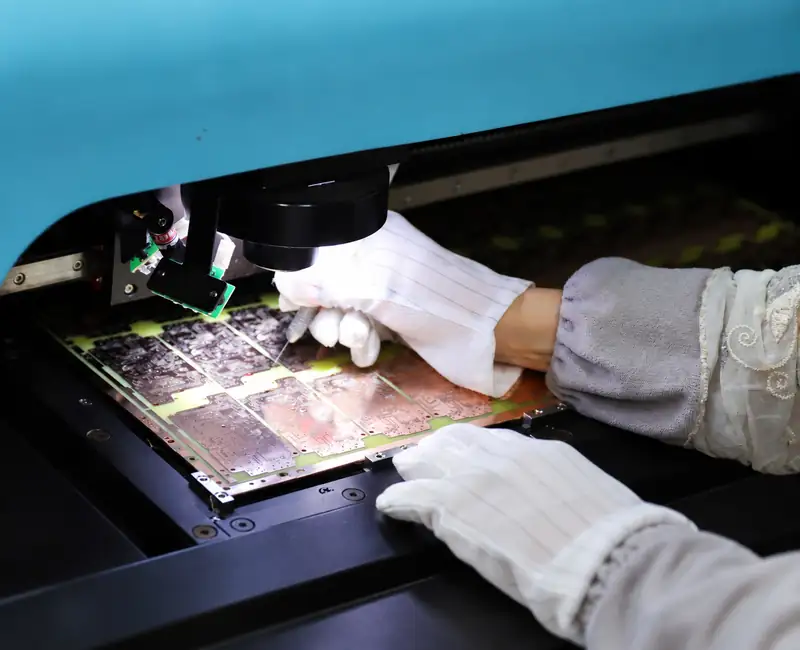

Review LZJPCB CertificationsWhy Choose Us as Your Copper Core PCB Manufacturer
Copper-core projects become risky when material, PCB, mechanical and assembly decisions live in separate conversations. One engineering-led release connects those inputs to manufacturing and inspection before volume repeats the wrong assumption.
Files, cross-section, core, dielectric, mechanics and acceptance criteria are reviewed before release.
Approved material and inspection decisions remain tied to the working revision.
Change points are reviewed instead of treating every “copper core” material as interchangeable.
Copper Core PCB Case Studies
A useful case must connect the heat source, released construction, mechanical interface and measured result. Until customer-authorized records are available, the evidence fields stay visible instead of being replaced by invented success claims.
待补充：application、device loss、board outline、core / dielectric / copper construction、interface、quantity、test condition and measurable result。
待补充
待补充
待补充
待补充：application、load profile、layer structure、material revision、mechanical attachment、production quantity、inspection evidence and result。
待补充
待补充
待补充
Get a Copper Core PCB Quote
A layer count is not enough to price or approve a copper-core board. Answer the four questions below so engineering can review the core, dielectric, circuit copper, mechanical interface and quantity behind the build you intend to order.
Frequently Asked Questions About Copper Core PCB
The word “copper PCB” can describe ordinary circuit copper, a copper metal base or unusually thick conductive copper. Open the relevant question to identify the construction before you compare suppliers or send an RFQ.
Copper PCB vs Copper Core PCB vs Heavy Copper PCB
“Copper PCB” is ambiguous because nearly every conventional PCB uses copper circuitry. A copper core PCB uses copper as the metal base / substrate behind an insulating dielectric and circuit layer. A heavy copper PCB is defined by thick conductive copper features and does not automatically use a copper metal core.
- Decision
- Conventional PCB
- Copper Core PCB
- Heavy Copper PCB
- Defining feature
- Copper circuit on a standard laminate system
- Copper metal base / core with insulating dielectric
- Unusually thick conductive copper features
- Primary route
- General signal, power and mixed functions
- Heat spreading into a defined mechanical interface
- High current, thermal mass or robust conductive features
- What to specify
- Laminate stackup and circuit copper
- Core, dielectric, circuit copper and interface
- Base / finished copper, geometry and current target
Aluminum PCB vs Copper Core PCB
Both are metal-base PCB routes, but the right choice depends on the complete dielectric, metal thickness, geometry, mass, interface, availability and cost. Compare both constructions under the same heat source and boundary conditions rather than choosing from one generic conductivity value.
- Decision
- Aluminum PCB
- Copper Core PCB
- Metal base
- Aluminum base / substrate
- Copper base / core
- System balance
- Often considered for weight, availability and commercial fit
- Considered when project heat spreading or mechanics justify it
- Final selection
- Validate dielectric and enclosure interface
- Validate dielectric, core and enclosure interface
